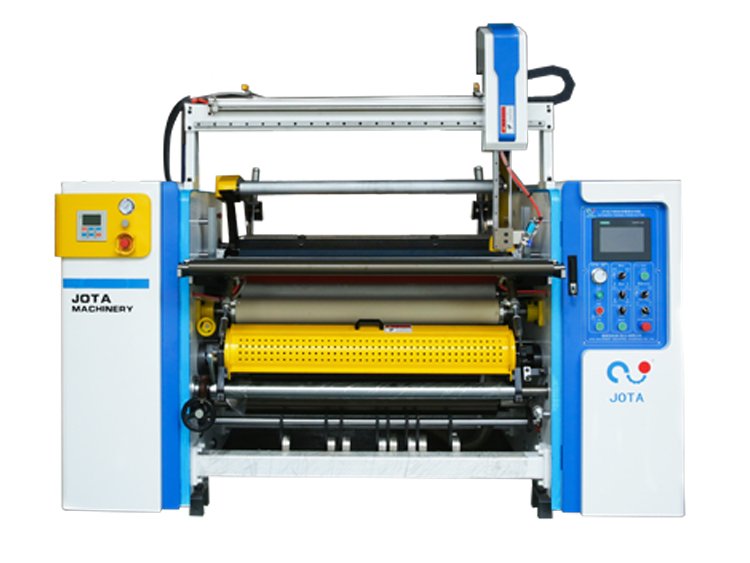

JT-SLT-900A POS Receipt Rolls Paper Slitters

Navigator's Choice
  • Medium price with higher rewinding quality
  • Portugal famous brand Navigator’s choice
  • Optional hydraulic jumbo roll loading
  • Spreader/banana roller

Parameters

 Item

JT-SLT-900A POS Receipt Rolls Paper Slitters

 Max. Unwinding Width

900mm

 Max. Unwinding Diameter

1000mm

 Max. Rewinding Diameter

300mm

 Min. Slitting Width

25mm

 Max. Machine Speed

210mm/min

 Main Power

3.5Kw

 Unwinding Shaft

3″ air expanding shaft

 Rewinding Shaft

0.5″, 1″ or as your request

 Weight

2500Kg

 Overall Dimension

2050mm x 1700mm x 1500mm

Specification

Application
JT-SLT-900A POS receipt rolls paper slitter is able to make cash register paper roll, ATM roll, adding machine roll,  thermal paper roll and so on.

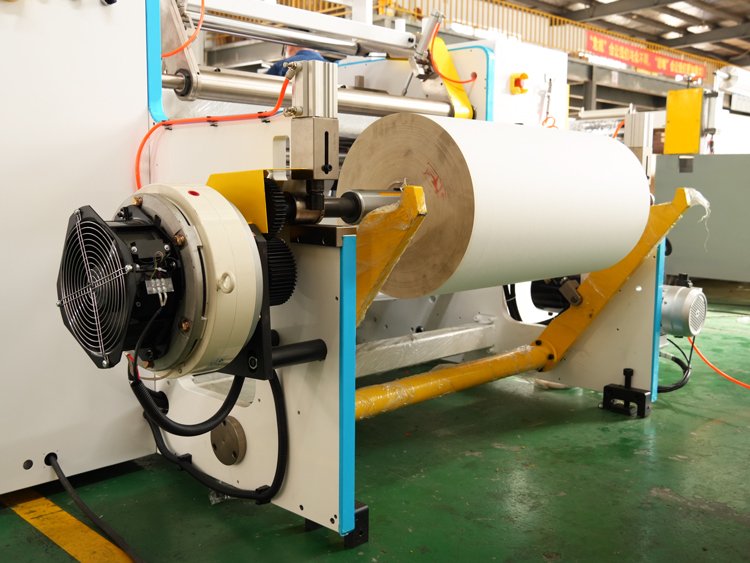

Unwinding Section
Pneumatic control automatic jumbo roll loading.
With banana/spreader roller, overlapping problem is avoidable, till roll edge is smooth.
Electromagnetic brake from Taiwan.
Ultrasound EPC (edge position controller) from Taiwan, high slitting precision.
Fully automatic tension controller.
Slitting Section
Disc blades are fixed by screw, easy adjustment.
Adjustable and removable lower blade shaft.
Automatic meter counting, after reaching the preset length, machine automatically stops.
Rewinding Section
0.5″, 1″ rewinding shaft or as your request.
Surface winding.

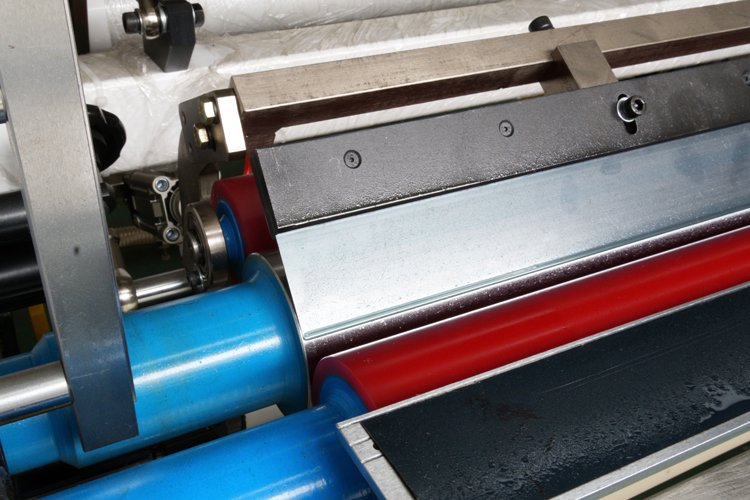

Auto tucker.
Controlling Section

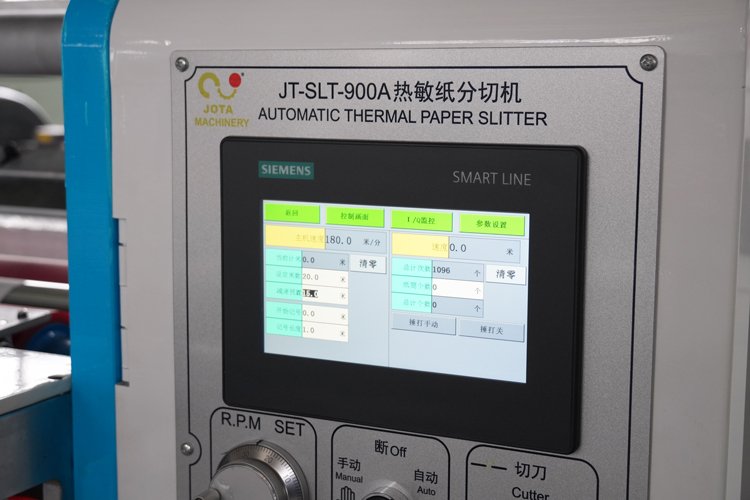

Siemens PLC and graphic touch screen HMI.
All the parameters are displayed on the screen.
Schneider low voltage electrical appliances.
EPC for web guiding.

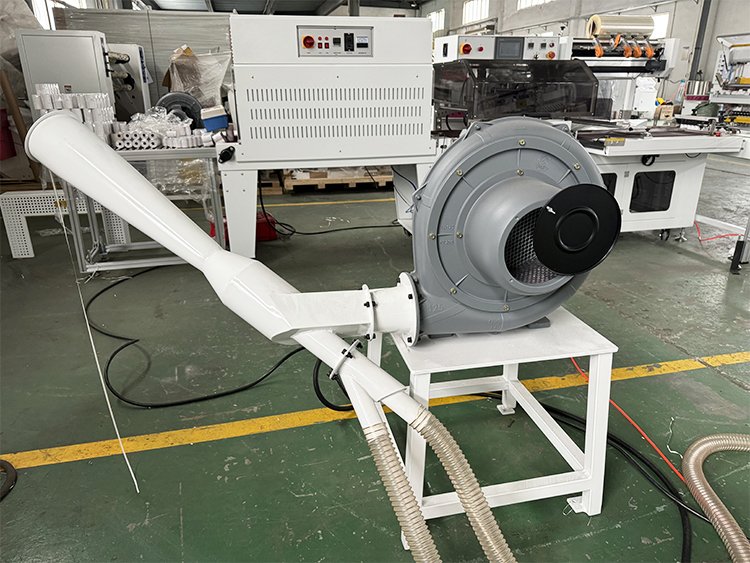

Waste Disposal
Air blower blows waste material off, the air blower power is 1.5Kw.
Stainless steel air blower pipe is more wear-resisting.

Configurations

Name

Model

Pieces

Remark

Computer System

PLC (Siemens)

1 Set

Siemens

Motor

1 Set

Siemens from Germany

Frequency Inverter

1 Set

YASKAWA From Japan

Unwinding Shaft

3″ air expanding shaft

Pneumatic Loading

Rewinding Shaft

0.5″, 1″ or as your request

Upper/Lower Round Knife

15 Sets

Electromagnetic Brake

1 Set

From Taiwan

Tension Sensor

2 Sets

Tension Controller

1 Set

Fully Automatic

Chuck

Self-expandable chuck

1 Set

From Taiwan

Magnetic Clutch

2 Sets

From Taiwan

Low Voltage Electrical Switch

SCHNEIDER

Blower

1 Set

China

Cylinder

Airtac from Taiwan

Precision Regulator

SMC from Japan

Relay

Omron

Spacer

As your request

As your request

China

EPC

1 Set

From Taiwan

The Essential Guide to POS Receipt Rolls Paper Slitters: How They Impact Your Business Efficiency

As the world increasingly shifts toward efficiency, cost-effectiveness, and high-quality production, the demand for precise and reliable equipment in the paper processing industry has never been higher. Whether you’re a business owner looking to optimize your production processes or a manufacturer in need of advanced machinery to boost your throughput, understanding the crucial role of POS receipt rolls paper slitters can provide you with a competitive edge in the market. In this guide, we delve into the purpose, significance, and operational benefits of a paper slitter machine, and how it can transform your business operations for the better.

What is a Cash Register Roll?

A cash register roll is a small paper roll that is used in receipt printers at retail stores, restaurants, and other point-of-sale (POS) terminals. These rolls are specifically designed for thermal printers, which print receipts by reacting to heat, rather than ink. The paper used in these rolls is often thermal paper, which has a special coating that changes color when exposed to heat, providing a quick and efficient way to print receipts for customers. As the backbone of everyday transactions in the retail sector, high-quality thermal rolls are indispensable for maintaining customer satisfaction and operational efficiency.

What is a Paper Slitter?

A paper slitter is a versatile machine used to cut large rolls of paper into smaller, more manageable rolls of specific widths. This cutting machine is essential in industries that rely on precise measurements and high throughput for large-scale production. In the context of POS receipt rolls, paper slitters are used to slice large thermal paper rolls into smaller rolls that fit into receipt printers, ensuring that businesses can provide high-quality receipts efficiently.

The JT-SLT-900A slitter, for example, is designed to cater to the needs of businesses just starting out in the thermal paper roll industry. It features advanced capabilities such as the hydraulic loading method, which can handle jumbo rolls of up to 1000mm in diameter, increasing production efficiency. This feature allows for effortless lifting of heavy rolls, streamlining the manufacturing process.

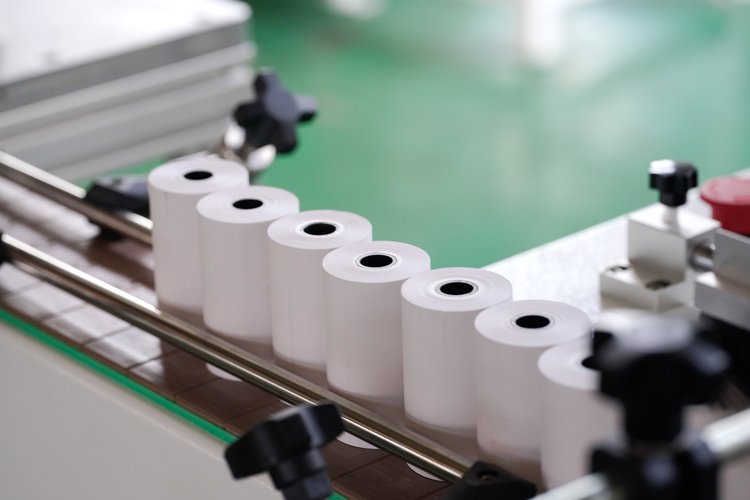

cash rolls 2027 750

What is the Purpose of a Slitter Machine?

The primary purpose of a slitter machine is to cut large rolls of paper, film, or other materials into narrower rolls of specified widths. The process of slitting ensures that businesses can produce products of varying sizes, all while maintaining a high level of precision. In the thermal paper industry, slitting is particularly crucial to produce POS receipt rolls, which require accurate, uniform widths to fit into printers without causing issues such as overlapping or telescoping.

The JT-SLT-900A, for instance, addresses the common challenge of telescoping rolls, which occurs when paper layers shift unevenly during rewinding, creating a mess of misaligned rolls. To combat this, Jota Machinery incorporates Taiwan-made 30-degree banana rollers (also known as spreader rollers) to eliminate the overlapping issue. This not only helps in improving the precision of the slitting process but also ensures that the end product is of the highest quality, meeting customer expectations.

rounde blade slitting

What is a Slitter in Printing?

In printing, a slitter is an integral piece of equipment used to trim, slice, and divide printed materials into smaller, specific sizes. In the context of thermal paper roll slitting, the slitter machine plays a key role in transforming large paper rolls into neatly slit POS rolls that are ready for use in cash registers and receipt printers. The role of the slitter in printing is to ensure that each roll is wound correctly and accurately cut to the desired size, which is essential for seamless printer operation and maintaining high product quality.

Moreover, slitter machines are now being used in advanced applications such as inline printing slitting machines, which help businesses imprint their logos or branding directly on the paper rolls. This makes it easier for companies to promote their brand while fulfilling the need for precise, high-quality thermal paper rolls.

The Hidden Costs of Low-Quality Paper Slitting Machines: How to Avoid Them

If you’ve ever experienced operational hiccups such as poor-quality slitting, overlapping, or telescoping rolls, you know how these issues can result in costly downtime, lost revenue, and dissatisfied customers. A poor-quality slitter rewinder machine can lead to these challenges, which ultimately undermine your business efficiency. To avoid these common pitfalls, investing in a high-performance machine like the JT-SLT-900A is a wise choice.

By addressing the overlapping issue and minimizing telescoping rolls, Jota Machinery’s slitting machines ensure that you don’t just produce paper rolls, but high-quality, perfectly slitted rolls that function seamlessly in receipt printers. The use of spreader rollers and hydraulic loading methods not only boosts production speed but also reduces the potential for costly errors during manufacturing, allowing your business to scale with confidence.



Why Should You Invest in a High-Quality Slitting Machine for Your POS Paper Rolls Business?

The thermal paper roll industry is a highly competitive sector, where quality control and production efficiency are paramount. When you invest in a high-quality slitting machine, you’re investing in:

  • Consistent Quality: Precision slitting ensures uniformity in the size and quality of each roll, which minimizes waste and ensures your rolls fit perfectly into printers.
  • Increased Efficiency: High-quality machines can produce up to 1.5 times the output of traditional machines, increasing your operational efficiency and driving profit.
  • Branding Opportunities: Inline printing slitting machines offer the chance to print your brand on each roll, helping you promote your business and stand out in the market.
  • Cost Savings: By reducing issues like overlapping or telescoping rolls, you can minimize the need for rework, reduce waste, and avoid costly mistakes.

Conclusion: The Path to Success in the Thermal Paper Roll Industry

As you explore the thermal paper slitting business, one thing becomes clear: investing in a high-quality paper slitting machine is a game-changer. The right equipment can help you produce consistent, precise, and high-quality POS receipt rolls, while also enhancing the efficiency of your operations. Whether you are just starting your journey or looking to upgrade your current setup, Jota Machinery offers solutions that meet your business needs.

Don’t let poor-quality slitting machines hold you back—invest in the JT-SLT-900A and unlock the full potential of your thermal paper roll production. Join the growing community of successful businesses that are embracing precision, quality, and efficiency in their production processes. Contact us today and discover how we can help you achieve your business goals!

Don’t let outdated equipment hold back your business growth. Invest in the JT-SLT-900A slitter rewinder today and take your thermal paper roll production to the next level. With superior efficiency, precise slitting, and the ability to scale with your business needs, our machines are designed to maximize output and minimize waste.

Ready to transform your production process? Contact Jota Machinery now to discover how we can help you optimize your slitting operations, boost profitability, and enhance your brand visibility. Don’t wait—your success in the thermal paper roll industry starts with the right equipment. Let’s build your future together!
