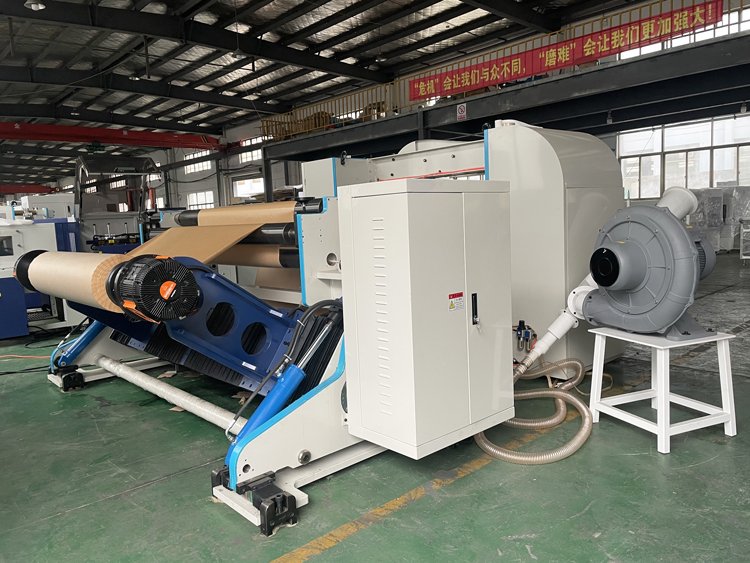

Water Activated Kraft Paper Gummed Tape Printing Slitting Machine
- 1400mm width Water Activated Gummed Paper Tape Slitting Machine
- 55% more small roll output than 900mm width machine
- Shaftless unwind stand
- Hydraulic jumbo roll loading
- Photoelectric sensor web guiding
- Anti-overlapping banana roller
JT-SLT-1400C water activated kraft paper tape printing slitting machine
|Max. Rewinding Diameter|
|Min. Slit Width|
3″ (76mm) air expanding shaft
|Rewinding Shaft Diameter|
0.5″, 1″ (size customizable)
|Water activated kraft paper gummed tape printing slitting machine JT-SLT-1400C is especially suitable for making gum tape rolls, gummed tape rolls, kraft paper tape rolls, cash register roll, ATM roll, ECG roll, POS roll, till roll, etc.|
|Shaftless hydraulic jumbo roll loading unit.|
|Fully automatic tension controller.|
|20kg/m2 electromagnetic brake from Taiwan.|
|Photoelectric sensor web guiding.|
|Direction adjustable balancing roller ensures roller itself always keep in tight touch with the whole web.|
|1-4 colors optional|
|Ceramic Anilox cylinder transferring the ink, long life, wear resistance, corrosion resistance|
|Dancer roll integrated buffer|
|Automatic web guiding system|
|Infrared drying units|

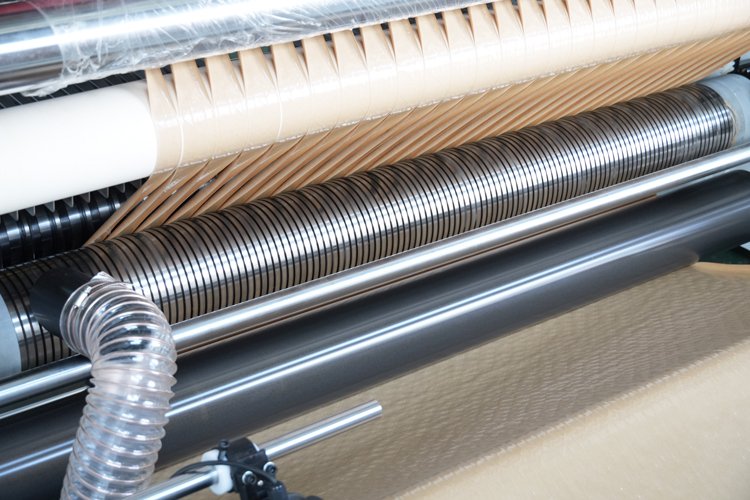

|The upper circular knives are fixed by screws, and the lower circular knives are fixed by aluminum spacer, which ensures cutting precision.|

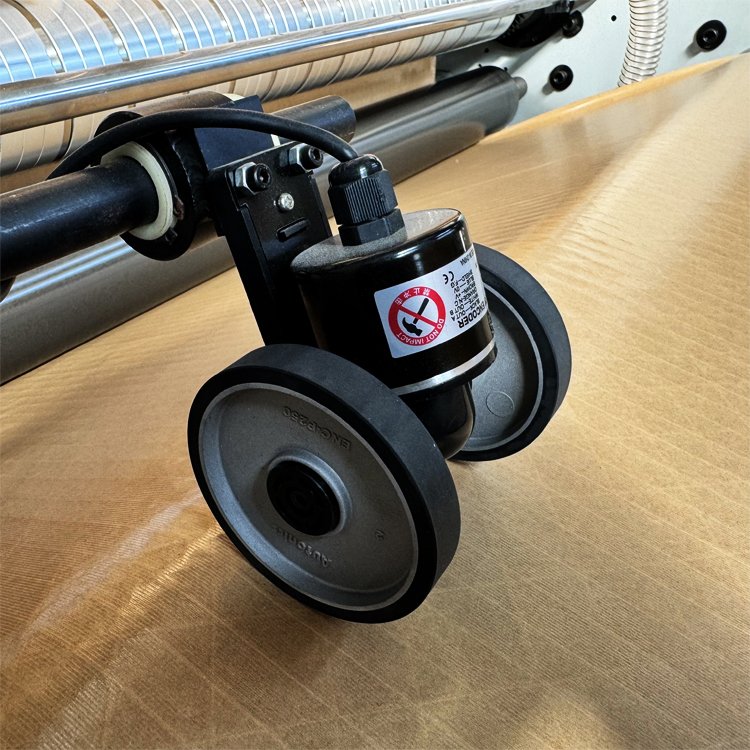

|The rotary encoder automatically metering slit length.|
|Automatic tucker tucks the tail, convenient for quickly trigger rewinding.|
|90° vertical lay-on roller, capable of moving up and down, ensures more balanced left and right pressure, wider rewinding diameter could be realized.|
|Overlapping problems could be avoided with banana roller.|
|Siemens PLC module, touch screen, and graphic user interface (HMI).|
|Yaskawa AC drives for Siemens master motor.|
|Schneider low voltage electrical appliances.|
|Edge waste blower through expulsion tube.|
|4 corners emergency switches.|
Why JT-SLT-1400C Water Activated Kraft Paper Tape Printing Slitting Machine
On 4 Sep 2020, a Serbian customer paid us an advance payment of 22965.5 Euros, he finally made up his mind to order our JT-SLT-1400C water activated kraft paper tape printing slitting machine, this machine has just been released this year.
The reason why we Jota can bag this Serbian customer’s order is because of some coincidence.
There happened to be a Korean customer who also wanted to purchase water activated kraft paper tape printing slitting machine, and this Korean client sent water activated gummed paper tape jumbo roll to us.
We can use the Korean client’s reinforced kraft tape jumbo roll for testing, then share the machine test video with the Serbian customer.
Due to such a coincidence, both Serbian and Korean customers intuitively feel the actual slitting and rewinding effect.
Because we Jota have our own factory, we have accumulated rich experiences on the thermal paper roll slitting machine, ready-made gummed tape printing slitting machines, ready-made kraft paper tape jumbo rolls, we can test machine according to customer requirements, and eliminate customers’ doubts in all aspects.
We can introduce the unique selling points of JT-SLT-1400C kraft paper tape printing slitting machine’s each division to this Serbian customer through a video call, from unwinding to waste discharging, one by one.

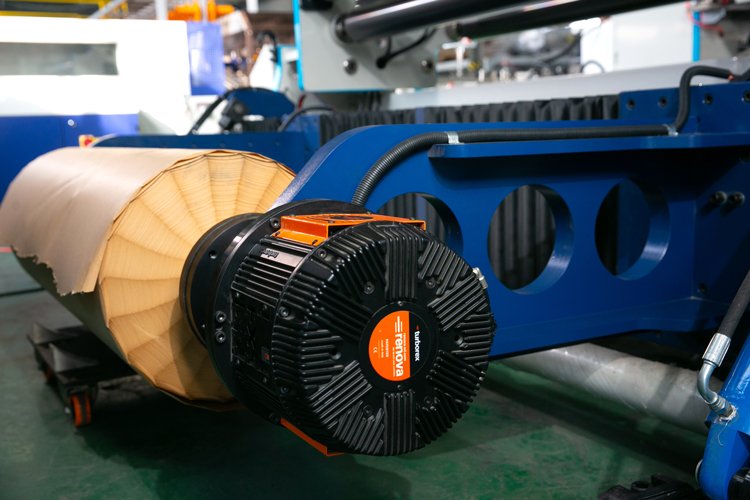

The unwinding section of JT-SLT-1400C introduces a shaftless unwind stand, it saves the process of threading the unwinding shaft into the jumbo roll, and finally saves startup time;
The unwinding division is also equipped with a hydraulic automatic jumbo roll loading system, just click the control button on the machine or remote control, then the jumbo roll’s loading and unloading can be finished by the machine itself automatically.
The printing department of JT-SLT-1400C creatively designed the buffer, also called accumulator, it is composed of servo motors, multiple functional rollers, lead screws, and other components.
With the buffer, the material can run a period of time in the buffer, the running time in buffer makes up for the winding shaft replacement time.
In addition, the printing department also introduces a web guiding system, such a system ensures that the pattern position of the printed jumbo roll accurately enters the slitting section, enhances the finished small roll’s uniformity, and beauty of the appearance.
Web Guiding System
Upper Circular Knives
Moreover, a banana roller is installed above the upper circular knife. You also have options for a fully automatic knife positioning system for the slitting width adjustment. You only need to preset the slitting data on the touch screen, then the slitting size could be automatically set up.
Fully Automatic Knife Positioning System for Slitter Rewinder
It can effectively separate the narrow strips of kraft paper tape after slitting, avoiding the problem of tape overlapping between neighbor narrowband, and ensuring that each small roll’s edges are neat and beautiful, making it easy to attract terminal consumers to purchase.
Eye-catching Banana Roller
The winding part of JT-SLT-1400C is equipped with an automatic tucker, it quickly trigger the winding;
The winding division also equips with an automatic tail-cutting gluing unit, it can automatically cut and glue the paper tail.
These designs can effectively shorten the time required for a single winding and effectively improve production efficiency.
Automatic Tail Cutting Gluing Unit
There are also many other small details about the design of JT-SLT-1400C, those detailed designs are finished by Jota designers’ hard work.
You are welcome to call or mail us for consultation.
If you are willing to open a water activated kraft paper tape slitting factory, our industry experience can help you avoid some detours and create your own profits in this industry as soon as possible.
In 2020, more and more customers have inquired about water activated kraft paper tape slitting machine.
This environmentally friendly and pollution-free material is bound to be popular all over the world.
Gum Tape Slit by JT-SLT-1400C Slitting Machine
Water Activated Kraft Paper Tape Printing Slitting Machine Ultimate FAQ Guide
Nowadays there are a wide using purposes on various tapes, because of the convenience of packaging. I would recommend is the currently popular water base activated kraft paper gum tape (WAT), which is made of kraft paper base paper, uniformly coated to edible vegetable starch adhesive, pressure-sensitive adhesive, or a heat-sensitive adhesive then for drying in a high-temperature dry oven.
There are also some high-standard tapes, which are sandwiched with longitudinal glass fiber filaments or glass fiber mesh to improve the reinforcement of the water-based activated gum tape (WAT).
This kind of tape produces stickiness after being over water, is environmentally friendly and pollution-free, recyclable and renewable resources, anti-unpacking, high stickiness, no warping, long shelf life, and guarantees long-term stickiness without moisture. It has been widely used in many fields.
Kraft paper tape is classified into water-free kraft paper tape, high-temperature resistant kraft paper tape, wet water kraft paper tape, white kraft paper tape, layered kraft paper tape, etc.
Water Activated Tape
What Does Water Activated Tape Mean?
Water-activated kraft paper tape is a new type of environmentally friendly, non-polluting, recyclable tape.
It is made of kraft base paper and edible vegetable starch glue. This kind of glue will be sticky when it gets wet, the stickiness is high, no warping, and tear resistance can effectively prevent others from unpacking easily.
If the water activated kraft paper tape can be protected from moisture, its adhesiveness will be effective for a long time.
Based on these characteristics, the water activated packing tape is especially suitable for export carton sealing or covering carton writing.
Kraft paper tape is an adhesive tape with kraft paper as the base material and coated with glue or vegetable starch glue on one side to make it have strong adhesion. It has the characteristics of environmental protection, reproducibility, anti-unpacking, strong stickiness, long shelf life, guaranteeing long-term stickiness under the condition of not being damp, etc., and is accepted by more and more customers.
Especially in some well-known companies in the global, they all have advanced environmental protection concepts, so they often take the lead in using more environmentally friendly products. Therefore, environmentally friendly kraft paper tapes, such as water activated kraft paper gummed tape, are becoming more welcomed in the market.
Today I would like to share some information on the water activated paper tape manufacturing machines.
The water activated paper tape is mainly rolled on a paper tube with an inner diameter of about D25mm, and the length is about 100-200m according to customer requirements. This form is very similar to our other business, the thermal cash roll machine. That is, all the paper ribbon rolls are rewinded in a small paper tube, the size of the paper tube is about 0.5″ or 1″.
Since they are similar in size, is it possible for us to use the same kind of machine to produce them? After a trial of testing, our engineers found that the thickness of the water activated tape is about 80-100gsm, the texture will be a little harder, and the surface will be slippery due to the glue coated on the surface.
There is also a kind of reinforced water activated tape, which is composed of two layers of kraft paper and two layers of glass fiber mesh, which is stronger, and the glass fiber processing inside requires technology and experience.
Combining the above characteristics, we found that we need to make improvements in the following aspects.
An automatic paper pushing device is created to replace the previous air blowing device. On our water activated paper gummed tape manufacturing machine, we designed a special air blower device for the core tucker. Under great pressure, the paper tails will be close to the paper tube to complete the tucker action. If the paper is too hard, the air pressure is not enough, so we specially designed an auto paper tails pushing device, it will help to push all the paper ribbon tails closing to the paper core, then the pressure roller will press it for tucking.
The auto paper tails tucker device is a very magical device that can quickly handle the bonding of paper tails and paper tubes, and quickly move on to the next action. In the traditional slitter rewinder, you need to manually paste tails to the paper core by double side tapes one by one. This action used to take at least 30 seconds, now after our improvement, the whole processing step can be completed in 2 seconds. Save a lot of labor and improve efficiency
2. Water activated has higher requirements for knives. Because the texture will be harder, the round slitter knife is an easy-worn product, which is more likely to wear out or blunt. Our engineers specially optimized the cutting edge angle of the circular slitting knife and used more wear-resistant materials to increase the working life of the round disc knife.
Especially for some reinforced water activated paper tapes, the hard material can cut off the fiber glass net quickly, without burrs, and improve the aesthetics and quality of the product.
3. The special expandable air shaft is for Coreless Water Activated Tape. We have designed a special fully-expandable air inflatable shaft to rewind water activated paper tapes with an inner diameter of D25. After the rewinding is completed, the air expandable shaft will be deflated, the finished paper rolls will be taken out. This technology comes from our coreless thermal paper roll slitter rewinders.
4. We also use the banana roller on this machine to avoid overlapping between the material’s ribbons. Water activated gummed tape with a smoother surface is easy to be slippery so that the paper ribbons will be easy to be overlapped each other. The use of a banana roller greatly avoids this problem.
The accumulation of technology comes from long-term hard working experiences. Our optimization of water activated tape has achieved perfect resolutions.
How Does Water Activated Tape Work?
The water activated kraft paper tape is coated with a layer of glue, such glue is a kind of vegetable starch glue, has no added chemical components, and is soluble in water.
Vegetable starch glue will produce stickiness after applying water, reinforced water activated tape is made based on this principle.
How To Use Water-Activated Tape
Water activated kraft paper tape can create a strong adhesiveness after being dipped in water, and it could seal the paper carton box firmly. It is an eco- environmentally tape adapted to the international development tape packaging trend.
It has the characteristics of high adhesion, high peeling strength, and strong tensile performance. Because of the use of pure wood pulp paper as the base material, instead of half wood pulp, the water activated kraft paper gum tape is environmentally friendly and the color of the base material is the same as the carton color, so it is uniform for a better appearance and the adhesive will not cause pollution to the environment and can be recycled and reused with the packaging. It is mainly used to replace some traditional tapes like BOPP tape, electric tapes for sealing, binding, etc.
There are generally two types of water-activated gum paper tape.
One is the manual method: you need to prepare a spray bottle, rags, scissors, and packaging objects. Take a suitable length of tape, spray evenly with water, wipe off the excess water with a rag, and then seal it on the surface of the carton. If the sealing is uneven in some places, please check whether there are oil stains or the water is not sprayed evenly.
The other is automatic water activated tape machine because it is a professional machine, so it is relatively simple to use, just install the water activated paper tape, take the appropriate length, the water has been sprayed evenly, and the seal is attached to the surface of the carton.
When you need to use water activated kraft tape to seal the box, just click the kraft gummed paper tape dispenser’s length button, and the corresponding length water activated tape will be first dipped in the dispenser and then ejected.
And then, you can fetch kraft gum tape and paste it on the carton for sealing.
Water Activated Tape Dispenser
Is Water Activated Tape Recyclable
The glue composition of water activated kraft paper tape is mainly vegetable starch, and the base paper is kraft base paper.
Both vegetable starch and kraft base paper can be recycled, so water activated kraft paper tape can also be recycled.
Why Use Water-Activated Tape
- 1. Water activated paper tape is an environmentally friendly material, which can be degraded.
When the carton is recycled, it does not need to be treated separately, it can be directly recycled and used by the manufacturer to make pulp, which reduces production costs.
- 2. Water activated paper tape also has very good adhesion.
It will not be affected by temperature and humidity, no warping, degumming, etc. during use, and has a longer validity period.
- 3. Water activated paper tape can also be used for writing and marking on the surface.
Using gummed tape can reduce costs.
Water Activated Tape Manufacturers
With the increasing popularity of water activated paper tape, the number of water activated paper tape manufacturers has also increased dramatically.
At present, the well-known water activated paper tape manufacturers include IPG, Uline, 3M, etc.
China’s water activated paper tape manufacturers are mainly concentrated in the Pearl River Delta region in southern China, especially in Dongguan City, Guangdong Province.
Custom Water Activated Tape
Custom water activated tape refers to printing end customer slogans and logos on the non-adhesive surface of water activated tape, the kraft paper tape will be more beautiful with printing patterns, makes terminal customer’s brand promotion much easier.
You are welcome to call or mail us for consultation.
Reinforced Water Activated Tape
Water activated tape has 2 types, 1 is reinforced type, the other is non-reinforced kind.
There are strings in the reinforced water activated tape, which make such kind of tape much stronger and tear resistant.
Non Reinforced Water Activated Tape
Non-reinforced water activated tape is different from reinforced water activated tape (WAT), it has no fiber thread and is relatively easier to be ripped or cut through.
What Is Gummed Tape?
Gummed tape is gum tape, also called water activated tape.
This type of tape is gradually popular around the world because of its widespread use by American retail giant Amazon.
It is made of kraft base paper coated with vegetable starch glue.
When exposed to water, it will be sticky, has high stickiness, does not warp edges, and can be 100% degraded.
It is an ideal substitute for plastic tape.
Today, when environmental protection is more and more important, water activated paper tape will definitely become more and more popular.
What Is Gummed Paper Tape Used For?
The main uses of gummed paper tape can be roughly divided into the following categories:
- 1. Sealing and packing
The biggest use of kraft paper adhesive is box sealing and packaging, which can basically account for 40% the kraft paper tape use. This type of kraft paper tape includes common kraft paper tape and water activated kraft paper tape.
- 2. Sticking lint
Some garment factories often use high-viscosity kraft paper tape to stick the lint on the garment. Everyone knows that there are often some lint on the clothing, which affects the appearance of the clothes, so you need to use tape to stick it, and this kind of kraft paper tape is the best.
- 3. High-temperature heat resistant tape
In a high-temperature environment, textile factories often have a process that needs to be exposed to high temperatures, and kraft paper glue can also be used as high-temperature heat-resistant tape.
- 4. Marking purpose
Since there are many colors of kraft paper tape, such as white, green, black, etc., different colors of kraft paper tape can be used for marking.
How Do You Use Gummed Tape?
- 1. Prepare scissors, water, and cardboard boxes;
- 2. Use scissors to cut the tape to an appropriate length, and pull the water-based kraft paper tape to a suitable position for cutting;
- 3. Use the prepared water to apply to the tape;
- 4. Spread the water-filled tape flat on the surface of the carton box.
If you think the above steps are too complex, you can also use a gummed tape dispenser.
Two Side Gum Tape
As far as I know, gum tape currently only has a single-sided adhesive type.
I searched for a long time on the two major search engine websites of Google and Baidu, but I did not find a manufacturer or supplier of double-sided gum tape.
If you have found anyone who can supply, please share their contacts with us.
Gum Tape Printing
One side of the gum tape is glued, this side cannot be printed, but there is another side without glue.
The side without glue is actually the surface of kraft paper, which can be printed by a flexo printing machine.

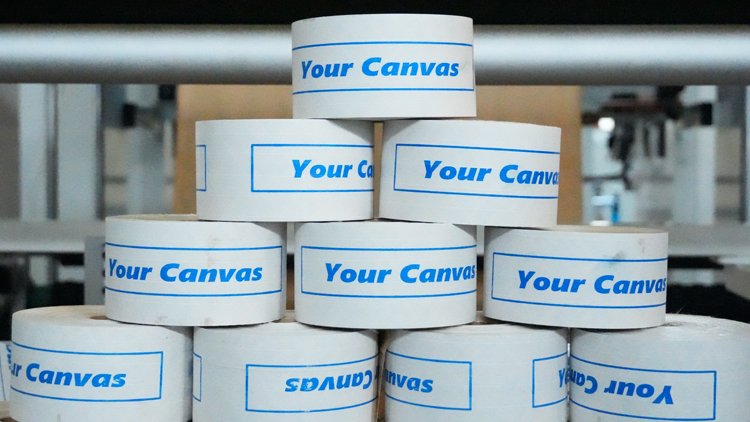

Custom Printed Gummed Paper Tape
These materials include the end customer’s brand logo, brand slogan, brand concept, etc.
The flexo printing machine supports up to 8 colors printing, no matter how complicated the pattern is to be printed by the end customer, it can be printed by making a suitable printing plate.
Water Activated Tape Slitting Machine
Water activated tape printing slitting machine is mainly used for cutting gummed paper tape jumbo roll and then winding separated gummed tape strips to small finished gum tape roll.
With regard to Jota water activated tape printing slitting machine JT-SLT-1400C, it is initially designed for a Turkish client for cutting and winding thermal paper.
Later, when we used different slitting rewinding machines to process the kraft paper tape jumbo rolls sent by Korean customers, the winding effect was not very good.
Because the kraft paper tape is relatively hard, bouncy, and the small roll that comes out is loose, and someone needs to stick the tape head on the paper or plastic core at the beginning.
When we use JT-SLT-1400C to handle the kraft paper tape jumbo roll, the effect is very good.

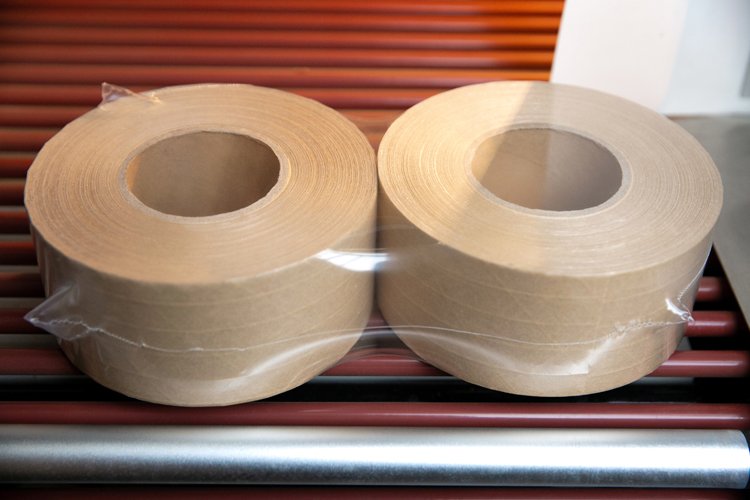

Finished Water Activated Tape Roll
Please send us an inquiry on this website, you can know more about the gum tape slitting machines, you can better understand why the JT-SLT-1400C slitter rewinder can realize so fantastic gummed tape winding effect.
Your company’s logo or the customer’s company name will be printed directly on the surface of the kraft paper tape, which not only improves the aesthetics but is also an advertising effect.
After printing, you will have a better paper tape production added value.
Taking into account the characteristics that kraft paper tape could be printed, our engineers also designed the online printing function. The tape printing machine is based on stacking-type flexographic printing machines with water-based ink and optimized mechanical structure. The water-based ink will pass through the ceramic anilox roller to the printing resin plate, and finally transfer to the surface of the kraft paper tape. It is called kraft paper tape printing.
Generally speaking, there are two types of anilox rollers for printing: iron rollers and ceramic rollers. Iron anilox rollers mainly range from 50-300LPI, ceramic anilox rollers range from 100-1000LPI, and The larger the line of anilox roller, the higher printing resolution is.
The characteristics of kraft paper surface are relatively rough and easy ink absorption, we recommend that you have an anilox roll line less than 300LPI. The ink load per square inch of the 300LPI anilox roller is 8.82g. Below this figure, the ink consumption amount is too small, and the printing pattern on the kraft paper may not be too clear.
The doctor blade used with the anilox roller is used to scrape off the excess ink on the surface of the roller. The doctor blade is a perishable asset. It is recommended to buy an extra box of doctor blades as spare parts when you purchase a kraft paper tape printing machine. The length of a box of the doctor blades is 500m, and it could be lasting 2-3 years working.
The ceramic anilox roll is fired at a high temperature of 1300 degrees, so the surface will be very hard and resistant to friction and worn. It will have a longer life than the iron anilox roll, but the price will be higher accordingly.
The anilox roller is a high precise roller. Its surface is located full of many tiny meshes that are invisible to the naked eye. The number of meshes is related to the mesh lines. LPI means Line per inch in a square inch, how many mesh lines are there quantity. The size of the grid determines how much ink is loaded. The ink loading capacity of 500LPI is 5.13, which means that the 500LPI anilox roller can transfer 5.13 grams of water ink to the one square inch kraft paper.
The printing speed of the Water activated kraft paper gummed tape printing machine is 70-100m/min. You can also increase the printing speed to 150m/min by choosing a more advanced doctor blade closed chamber system. The scraper blade and the ink cartridge forms a closed space, and the ink is in the closed ink combination. When printing at high speed, it is not easy to leak out. It’s safer and more efficient.
We installed a doctor blade closed chamber device on the 3-color tape printing machine for our Serbia customers, and its maximum printing speed can reach 150m/min.
water activated kraft paper tape printing machine working speed is 150m/min, and water activated gum tape slitting machine working speed is 160m/min. They could be connected easily to set up a complete paper tape manufacturing line.
The working mode of the printing machine is continuous working and the tape slitting machine is an intermittent working mode. When the kraft tape slitting machine is shut down to change the finished tape roll, the printing machine is running at a relatively low speed. But it cannot absolutely stop. Because once the printing stops, the ink will leave an ink line on the surface of the kraft paper, which will affect the printing quality.
In addition, once the tape printing press is stopped, the tension indicated by the relative material has also changed, which will affect the already stable auto registration system and have a great impact on the pattern of multi-color printing.
Therefore, our professional engineers designed a buffer also called an accumulator to store excess paper printing rolls to form a buffer device.
Under the control of PLC, the tape printing machine and kraft gum tape slitting machine are synchronized. When the tape slitter rewinder machine is shut down to change rolls, the printing machine works at low speed and the printed kraft paper tape is stored in the buffer.
When the gummed tape slitter rewinder starts to work again, the speed of the tape printer machine will rise again, and finally the gummed tape slitting machine running at the same high speed. the two tape manufacturing machines become complete water activated kraft paper gummed tape production machine line.
At present, our kraft paper tape printing machine can provide 1 color, 2 colors, 3 colors, 4 colors up to 8 color tape printing unit options.
But most customers choose 2-3 color stacking type tape printing machines. Because the printed pattern on the surface of the kraft paper requires the company logo or company name only.
Of course, if you have higher printing requirements, we can also provide Satellite CI Flexo Graphic Printing Machine as your choice of tape printing machine. It has more precise printing accuracy and a more stable working system. If you are interested, you can contact us for more information.
Water Activated Kraft Paper Tape Production Manufacturing Machine Line has become a more popular product of our company. At present, you can see this product in the following countries: India, Serbia, Spain, and Korea.
Of course, more and more customers are interested in communicating with us on the tape production machine. We also welcome you to join our negotiations.
Compared with the traditional paper business, you can easily start this kraft paper tape business plan, you only need a set of coating and lamination machines, a piece of tape printing machine and a set of tape slitting manufacturing machines.
If you also want to start your kraft tape business, please contact us, we shall send you a kraft paper tape business plan for your better understanding.
What Is a Water Activated Kraft Paper Gummed Tape Printing Slitting Machine?
Water activated kraft paper gummed tape printing slitting machine is a machine used for making adhesive tapes. The machine is a complete set of equipment for fully automatic roll trademark printing machine and roll slitting machine.
- What Is a Water Activated Kraft Paper Gummed Tape Printing Slitting Machine?
- What Are the Benefits of The Gummed Paper Slitting Machine for My Business?
- What is the Saving Cost Associated with Operation of Your High Speed Gummed Paper Slitting Machine?
- How Does A High Speed Gummed Paper Slitting Machine Work?
- How is Printing, Slitting, and Technology integrated in a Water Activated Kraft Paper Tape Printing Slitting Machine?
- What Is Water Activated Tape?
- Who Are the Best Gummed Kraft Paper Tape Machine Manufacturers?
- What Are the Specifications of Jota Water Gummed Kraft Paper Tape Machine?
- What Are the Parameters of Your Water Activated Kraft Paper Gummed Tape Printing Slitting Machine?
- What is the importance of web guides and how does it relate to web tension?
- Can I Print on The Gum Tape Using the Water Activated Tape Slitting Machine?
- Is It Possible to Have Automatic slitted Paper Tape Roll Removal in High Speed Gummed Paper Slitting Machine?
Water activated kraft paper gummed tape printing slitting machine is especially suitable for making a variety of products. It can be modified to suite your business needs and that of your customers. Some of the uses that the water activated kraft paper gummed tape printing slitting machine can be used for including:

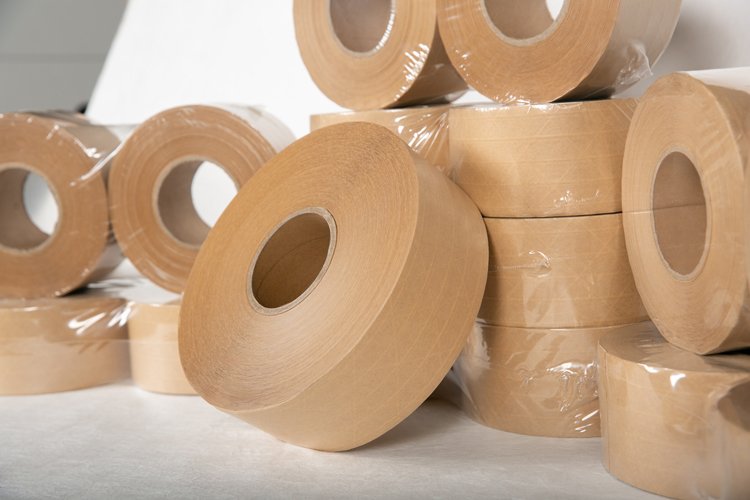

- Making gum tape rolls.
- Making gummed tape rolls.
- Kraft paper tape rolls.
- Manufacturing of cash register roll.
- Automatic Teller Machine (ATM) roll.
- ECG roll.
- Point of Sale (POS) roll.
- Till roll.
Water activated kraft paper gummed tape printing slitting machine also has many other uses. It can also be used in the laminating and slitting tooling of a myriad of products.
Note that the usage of high speed gummed paper slitting machine can be customized. The customization is dependable on the application of the machine. for gummed tape, we ensure that our Water activated kraft paper gummed tape printing slitting machine are made using the latest technology.
We also ensure that the water gummed kraft paper tape machine is fully automated. This is to make it easy to operate and do a variety of orders with the machine. Our gummed paper slitting machine is the most versatile in the market. It provides a combination of surface rewind system.
Jota water activated kraft paper tape printing slitting machine is an all-round machine. We have integrated both the printing and slitting options. This will make your product labeling easier while at the same time slitting different paper rolls.
Our design teams are ready to list to your design ideas. Just share with us your designs ideas and we will gladly guide you on the different parameters and configurations. We also provide you with prototypes for you to experience our kraft paper tape machine at work. We can also organize for your visit at our factory so that you get firsthand experience on our manufacturing processes.
What Are the Benefits of The Gummed Paper Slitting Machine for My Business?
Gummed paper slitting machines can be used for different purposes in your paper milling business. There are so many reasons and benefits you should have a gummed paper slitting machine for your business. Some of the benefits of having a paper water activated kraft paper tape printing slitting machine in your business include:
Efficiency And Improved Lead Times for Your Business
If you are looking for efficiency in your paper mill business do not look further. At Jota Machinery, we always ensure that all our products enhance efficient. Therefore, our team is always researching and coming up with machines that seek to enhance efficiency.
Our product portfolio is wide with different paper slitting machines to choose from. Water activated kraft paper gummed tape printing slitting machine is among one of our recent inventions. We guaranteed you efficiency and improved lead times for your business.
Water activated kraft paper gummed tape printing slitting machine is fully automated. This means that ones you press the start button, it is system go. The machine ensures fast production. It is also equipped with the latest technology from the jumbo paper loading to the packaging.
Water activated kraft paper gummed tape printing slitting machine works fast with precision. It is equipped with round disc cutters that ensure clean, quality slits. The gummed tape will be slitted to the last millimeter as set automatically. The Water activated kraft paper gummed tape printing slitting machine is capable of also packaging the final gummed tape rolls.
We understand customers insist on timelines. That is why we have ensured that out Water activated kraft paper gummed tape printing slitting machine has increased output per run. Depending on the size of your machine, we can achieve a hundred tape rolls per every run.
An optimized production time and increased quantity per run means that you will be able to meet your customer’s deadlines. You can write us a review if you are our current customer and tell us how we can improve your experience.
Quality Gummed Kraft Paper Slitting Machine
Jota Machinery’s vision, mission, and goals are all anchored on quality. We ensure continues quality improvement in all our Water activated kraft paper gummed tape printing slitting machine production process. Our design engineers are always on the lookout for quality improvement.
For instance, Water activated kraft paper gummed tape printing slitting machine is our breakthrough product. A lot went into designing this machine. We have ensured that each part is checked for quality and procured from the leading parts manufacturers. What is produced in house must follow strict quality checks.
Water activated kraft paper gummed tape printing slitting machine drives are produced by the leading machine drives manufacturers. Our gummed kraft paper tape machines are installed with Yaskawa AC drives for Siemens master motor. It is also installed with Schneider low voltage electrical appliances.
All these installations are from renowned parts manufacturers in the respective fields. All parts are of the highest quality and vetted before installation and after installation. This means we will confidently guarantee you years of service when using our water activated kraft paper gummed tape printing slitting machine.
We also ensure that we use quality raw materials in the production of the various parts of our gummed paper slitting machine. this ensures that our water activated kraft paper gummed tape printing slitting machine serves you for long.
Another benefit of getting a high speed gummed paper slitting machine from us is our customization capabilities. We are open to your design ideas and very willing to actualize them. Be assured that your specifications, parameters, and machine mechanisms will be actualized.
We understand that different gummed paper slitting machines have different capabilities. That is why we encourage you to share with us your specifications and configurations. You can also come in person to our factories. Here we will show the different gummed paper slitting machines we have then you can make informed decisions.
We also have years of experience and a global clientele. This means we are experienced water gummed kraft paper tape machine manufacturing. Apart from the water activated kraft paper gummed tape printing slitting machine, we have many other categories of machines that you can choose from.
Under each category of machines, we have different designs of machines. We strive to assure you of different machine options for your paper mill. With a wide category to choose from, you will minimize the amount of time needed to manufacture your specific machine. This is because we already have a variety of gummed paper slitting machines already stocked.
Call us or visit us for all your water gummed kraft paper tape machines designs. You can also visit our website or reach our customer agents for all your water gummed kraft paper tape machine customization.
Be assured of absolute confidentiality when it comes to sharing your design concepts. These will be only used for your gummed kraft paper slitting machine production. Your specific designs will remain your property and you can patent them. We believe and uphold integrity as a company.
What is the Saving Cost Associated with Operation of Your High Speed Gummed Paper Slitting Machine?
At Jota Machinery, your business success is our priority. All our gummed paper slitting machines are made with that in mind. Rom energy consumption to the waste material, we ensure you get value for your money.
Our high speed gummed paper slitting machines are build using the latest technology. The technology is aimed at ensuring efficiency and cost reduction. Jota gummed kraft paper slitting machines are installed with components that aim at waste reduction. Some of the features of the water gummed kraft paper tape machine also help in reduction of energy consumption.
Some of these features may include:
- Ability to slit narrow scope paper.
- Automatic counting the length of the jumbo paper roll and slitted small size rolls.
- Quantity of gummed tape controls.
- Automatic length setting.
- Automatic stopping incases of machine fault or end of production.
- Machine break down diagnostic alarms and reeling.
- Automatic error corrections
- Inflatable shaft receiving material.
- water activated kraft paper gummed tape printing slitting machine tension control.
- Paper roll number counting capabilities.
- Stable firm running.
All these features serve to cut down costs associated with the operation of the water activated kraft paper gummed tape printing slitting machine. Some of these costs include:
- Cost associated with manpower to operate the high speed gummed paper slitting machine.
- Saves you on electricity costs.
- Costs of maintenance and replacement.
- Wear and tear costs.
- Costs associate with material wastages.
- Avoids customer order cancellations.
- Costs associated with low production quantities.
At Jota machinery, we guarantee you of profit margins for your business. This is because your business is our business.
Affordability And Profitability
At Jota Machinery, we always ensure that you get the best machines at affordable prices. You are guaranteed value for money when you place your order with us. The best thing is that you do not even need to come to our China offices. Just place your order through our online platform. Our work will be to ensure that your gummed paper slitting machine reaches you.
We ship internationally following strict international shipping guidelines. At Jota Machinery, we will also assist you in getting the best shipping agents in the market. This will save you valuable time and money. We will also assist you in the payment of the required duties and licenses.
It is important to also be proactive in your shipping processes to avoid certain charges. These charges may include warehousing fees and extra taxes associated with storage. We ensure that we help you avoid extra charges on your high speed gummed paper slitting machine.
Affordable gummed paper slitting machines means more profitability for you. You will be able to break even quicker and profit from your paper mill business. Choose Jota Machinery for all your gummed kraft paper tape machine needs.

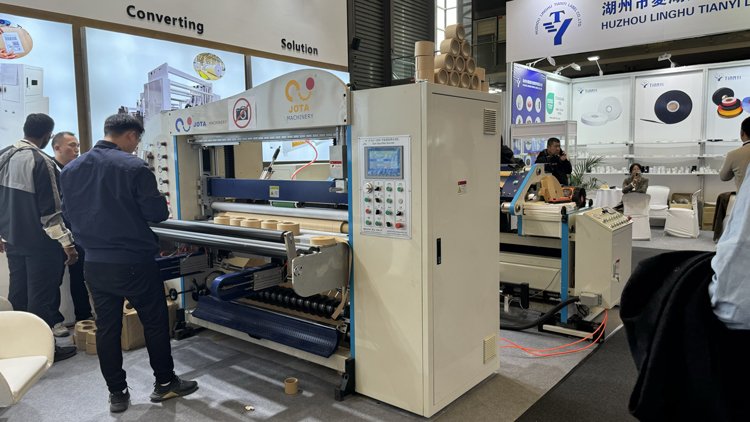

How Does A High Speed Gummed Paper Slitting Machine Work?
Our high speed gummed paper slitting machine is one of our latest additions to our product portfolio. It is an important machine and works as a gummed tape printing slitting machine. it is a unique machine that can ready-made kraft paper tape jumbo rolls into smaller size paper tape rolls.
Water activated kraft paper gummed tape printing slitting machine works easy. It performs a type of shearing that cuts large rolls of material into multiple, narrower rolls. A water activated kraft paper gummed tape printing slitting machine unwinds the material. It then runs it through the machine to be cut. Lastly it rewinds the material on one or more shafts to form narrower rolls.
Water activated kraft paper gummed tape printing slitting machine is used in the converting industry. It is mostly used by companies that produce flexible packaging material for products such as the paper adhesive tapes and gummed kraft paper tape.
Gummed paper slitting machines are well-suited for a wide range of products. These include polyethylene, polypropylene, polyester, film laminate, self-adhesive label stock and paper. You can as well use it in other flexible materials.
To learn more about how the high speed gummed paper slitting machine work, it is important learning of its various divisions. The divisions explain its working mechanism. These divisions of the gummed paper slitting machine include:
The Unwinding Division
Water activated kraft paper gummed tape printing slitting machine is fully automatic from the unwinding to the winding divisions. The unwinding stage consists of an unwind stand onto which the parent roll of paper is loaded and secured. The stand holds the roll about its central axis and allows it to rotate.
Jota water activated kraft paper gummed tape printing slitting machine is also installed with a shaftless unwind stand. The shaftless unwind stand saves the process of threading the unwinding shaft into the jumbo roll. It also subsequently saves startup time.
Our gummed kraft paper tape machine also has a hydraulic automatic jumbo roll loading system. It is an important part of the gummed kraft paper tape machine. this is because you will not have to employ extra operators to load the jumbo paper rolls saving you money.
The jumbo paper roll is automated. With just a click of a button, you can load and load the jumbo paper roll. Our water gummed kraft paper tape machine can also be controlled using a remote.
The unwinding division is also equipped with an automatic web guiding system to guide the web into the slitter head position. This ensures that you get the most accurate slitted small size paper tape rolls. The roll is held either by inserting two chucks each with mechanical griping elements on both ends. The ends should be of the roll which expand to grab the jumbo paper roll.
When initially unwinding heavy jumbo paper tape rolls, large inertial forces are experienced. Unregulated inertial force may tear the jumbo paper tape roll or deform pressure sensitive materials. This is avoided by using driven unwinds which can be braked when necessary. The brakes serve to maintain the accurate tension of the material during the process.
The Printing Division
The printing division is where the jumbo paper roll is printed. The printing department is also designed as the buffer. it is composed of servo motors, multiple functional rollers, lead screws, and other components. All serve to help in the printing of the paper roll.
Some of the prints you can print on the paper tape roll include:
- Company logo
- Company name
- Instructions on how to unseal a package.
- Warnings to be followed.
- Any other information as requested by your client.
Our water activated kraft paper gummed tape printing slitting machine comes in different color capabilities. You can choose from 1 to 4 color optional. Printing and slitting can be seamlessly connected to realize continuous machine operation. It will also improve the machine uptime and improve production efficiency.
The high speed gummed paper slitting machine is also equipped with a web guiding system. A web guiding system ensures that the pattern position of the printed jumbo roll accurately enters the slitting section. It also enhances the finished small roll’s uniformity, and beauty of the appearance.
Buffer/ Accumulator Division
Our water activated kraft paper gummed tape printing slitting machine has buffer division that supports the printing functions. The buffer division basically allows for printing and slitting of the paper tape roll to go on simultaneously.
The buffer assists in keeping the machine running when the rewinding process is complete. This allows for the replacement of the rewinding shaft. This means if the slitting stops as the rewinding shaft is being changed, the printing process will still be running. In this way, the buffer division allows for printing and slitting to be seamlessly connected.
Some of the components of the buffer division include multiple functional rollers, servo motors, lead screws among other components. The buffer division is an important part for your water activated kraft paper gummed tape printing slitting machine. it allows for continuous machine operation, improve the machine uptime, and improve production efficiency.
The slitting division is where the jumbo paper tape roll is cut into smaller size paper tape rolls. It is an important section of the water activated kraft paper gummed tape printing slitting machine. this is because the slitting determines the quality of the final paper tape roll.
Our water activated kraft paper gummed tape printing slitting machine adopts the design of upper and lower circular knife shear cutting. This type of cutting fully guarantees the precision of slitting. To separate the narrow strips of kraft paper tape after slitting, a banana roller is installed above the upper circular knife.
The banana roller installed above the upper round disc cutters helps mitigate the problem of tape overlapping. Overlapping is when the tape overlaps between neighbor narrow bands which can lead to entanglement of the paper tape rolls. It also ensures that each small roll’s edges are neat and beautiful.
The winding part of water activated kraft paper gummed tape printing slitting machine is equipped with an automatic tucker. The automatic tucker helps in quickly triggering the rewinding. The rewinding division is also equipped with an automatic tail-cutting gluing unit. The tail cutting unit can automatically cut and glue the paper tape tail.
They are various factors that determine the type of winder to be used under the given conditions. The factors may include the type of material being wound and the desired hardness of the final roll. The rollers which are after the slitter head keep the slit sections separate as they enter the winding. This is to prevent the sheet from weaving back and forth between adjacent paper tape rolls in the roll set.
Our gummed kraft paper tape machine designs can effectively shorten the time required for a single winding. This effectively improves the production efficiency.
There is a lot that goes into completing the production of gummed paper tape. From the unwinding division to the winding part. It takes a systematic and conveyor like system. Our machines are made to work automatically throughout the production line.
How is Printing, Slitting, and Technology integrated in a Water Activated Kraft Paper Tape Printing Slitting Machine?
All In One Water Activated Kraft Paper Tape Printing Slitting Machine
Jota water activated kraft paper tape printing slitting machines come equipped with both slitting and printing capabilities. We use the latest technology when it comes to printing on your various tape products. The printing speed of the Water activated kraft paper gummed tape printing machine is 70-100m/min.
The water activated kraft paper tape printing slitting machines also use ink cartilages that you can buy locally. The machine is easy to use and operate giving the business high products outputs. The printing head can print up to microscopic print details of high quality.
You can choose and specify on the color stacking type for your water activated kraft paper tape printing slitting machines. Our water activated kraft paper tape printing slitting machines tape printing options are available in different colors. We can provide 1 color, 2 colors, 3 colors, 4 colors up to 8 color tape printing unit options.
The water activated kraft paper tape printing slitting machines is also equipped with a slit head. The printed web rolls can be slitted into the required size of the small size tape rolls. Our water activated kraft paper tape printing slitting machines has a slitting precision of up to 0.3mm. the machine is applicable to slitting different kraft paper tape. Though we can customize your water activated kraft paper tape printing slitting machines to work on different materials.
The slitting section is equipped with round disc cutters that you can set automatically. The cutting precision is the most accurate in the market. The round disc cutters use shear slitting that process clean slits and quality edges. It also minimizes waste from slitting.
Choose Jota water activated kraft paper tape printing slitting machines for all your gummed tape needs. We will ensure that you get quality and value for your money. Our sales agents are always on the ready to take your order.
Latest Technology for Your Water Gummed Kraft Paper Tape Machine.
At Jota Machinery, we always ensure our research and development (R&D) is continuous. Our engineers and designers are always researching for the most effective water gummed kraft paper tape machine. By integrating research and technology, we ensure that you get efficient machines.
This means we also provide room for you to input your design requirements and additions. Some of the add-ons that you can input to the water gummed kraft paper tape machine include:
- Differential shaft
- Air slitter mechanism
- Tension control system
- EPC system
- Different slitting methods for your water gummed kraft paper tape machine.
- Diameter detection
- Meter counter
- Flat blade
- Air knife.
We encourage you to do prior research before making your water gummed kraft paper tape machine order. This will ensure that when you buy your water gummed kraft paper tape machine, you get what fits your business.
The application of your water gummed kraft paper tape machine will also guide you. It will ensure that you procure the correct machine. as stated earlier, water gummed kraft paper tape machine has different applications apart from gummed tape protection. The other applications may include OPP, BOPP, PET, PVC, Transfer paper, foil non-woven among other applications.
Some of the latest technological additions to our water gummed kraft paper tape machine include:
- A duplex rewinder
- Automatic web guiding system
- Photoelectric sensor web guiding.
- High resolution touch screen control monitor. Equipped with PLC and touch panel.
- Automatic error messages and scheduling are displayed on the screen.
- High speed rewinder
- 1-4 color options
- The rotary encoder automatically metering slit length.
- Position control to ensure accurate slitting position.
- Diameter detector to control rewind motor speed.
Ours is a continuous improvement process. We guarantee you the most relevant water gummed kraft paper tape machine in the market. Reach us for all your technological upgrade ideas. We will be glad to guide you through the whole process.
What Is Water Activated Tape?
Water activated tape is a type of packaging tape that uses a water-activated adhesive to bond with cardboard. Water base activated kraft paper gum tape is made from kraft paper base paper. It is uniformly coated to edible vegetable starch adhesive, pressure-sensitive adhesive. It can also be made from a heat-sensitive adhesive then for drying in a high-temperature dry oven.
The best way to apply water activated tape is with a packaging tape dispenser or a sponge. The adhesive reactivates with water and sticks to the cardboard. Water activated tape is popular in large industries because being a wet paper tape it adheres to the fibers of the carton as it dries.
As it is made from kraft paper and uses a starch-based adhesive. It is considered biodegradable and an environmentally friendly form of packaging tape. There are more reasons that you should use water activated tape. These reasons include:
- It is easily activated by water giving you less work.
- It is cheaper compared to other types of adhesives or tapes in the market.
- It is environmentally friendly and pollution free.
- It is easy to dispose because it is biodegradable given the fact that it is a starch-based adhesive.
- It is recyclable and renewable.
- Offers an anti-unpacking protection to packed products.
- Water activated tapes are known for their high stickiness.
- Do not have warping.
- Be assured of a long shelf life.
- You are guaranteed of long-term stickiness without moisture.
The best thing about water activated tapes is that you can print on them. Kraft paper itself has printing properties making it ideal as a printable paper. It is possible to print various patterns or company logos on the surface of kraft paper to improve different market demands.
It is important also to note that kraft paper comes in different types. The type of the kraft paper will determine the type of water activated tape. Some of the types of kraft paper for making water-based tapes include but not limited to:
- High temperature resistant kraft paper tape.
- Water free kraft paper tape.
- White kraft paper tape.
- Wet water kraft paper tape.
- Layered kraft paper tape
To ensure that your water activated tape serves you longer, protect it from moisture. By doing this, you are assured of effective adhesiveness for a long time. The water activated packing tape is especially suitable for export carton sealing or covering carton writing. It is worth noting that there is an increased uptake on water activated tapes.
More companies are ordering the water activated tapes because they are environmentally friendly. This a business angle any paper milling business should not miss. That is why the Jota water activated kraft paper gummed tape printing slitting machine is specifically designed for water activated tape production. Order from us and we guarantee you of profitability in your paper milling business.
Who Are the Best Gummed Kraft Paper Tape Machine Manufacturers?
At Jota machinery, we are the leading manufacturers when it comes to water activated kraft paper gummed tape printing slitting machine. Talk to us on all your needs concerning water gummed kraft paper tape machines.
Why are we the best? These are the reasons why:
- Our gummed paper slitting machines are the best in efficiency. We ensure that we mitigate unnecessary machine breakdown. We have manufactured our water gummed kraft paper following the best industry practices.
- Be assured of well-priced high speed gummed paper slitting machines from us. We value your business profitability hence ensure our machines are well priced and affordable.
- Jota machinery has accumulated rich experiences on water activated kraft paper gummed tape printing slitting machine over the years. Be assured of well knowledgeable business partner for your paper mill business.
- Our gummed kraft paper slitting machine is manufactured with cost reduction for your business in mind. The gummed paper slitting machines are automated to reduce the number of machine operators. It also has mechanisms for material water reduction. You are also assured of quality water activated paper tape rolls.
- We ensure that our high speed gummed paper slitting machines are integrated with the latest technology. Our design engineers are always looking for the best ways to enhance your experience with our machines. We have a continuous R&D department. For instance, our high speed gummed paper slitting machine is equipped with the latest control systems.
What Are the Specifications of Jota Water Gummed Kraft Paper Tape Machine?
Jota water activated kraft paper gummed tape printing slitting machine is made specifically to produce water activated tapes. The specifications of the water activated kraft paper gummed tape printing slitting machine can be categorized into sections. Some of these specifications include:
- Jota gummed kraft paper sitting machine is equipped with a shaftless hydraulic jumbo roll loading unit.
- it has a fully automatic tension controller.
- The unwinding section is also equipped with a 20kg/m2 electromagnetic brake from Taiwan.
- For cleaner slitting, it is equipped with photoelectric sensor web guiding mechanism.
- The water activated kraft paper gummed tape printing slitting machine has a direction adjustable balancing roller. It ensures roller itself always keep in tight touch with the whole web.
- The printing section can accommodate 1 to 4 color options. This allows for the printing of intricate designs and logos.
- The printing section is also equipped with a ceramic anilox cylinder. The ceramic anilox cylinders is used for transferring ink. It is also durable, wear resistant, and corrosion resistant.
- Water activated kraft paper gummed tape printing slitting machine also have dancer roll integrated buffer installed. An automatic web guiding systems ensures clean, precise, and high-quality prints.
- The printing section is also equipped with infrared drying units to ensure that the prints dry fast.
- The controls of the water activated kraft paper gummed tape printing slitting machine are installed with Siemens PLC module. It is a touch screen, and graphic user interface (HMI).
- The high speed gummed paper slitting machine also has Yaskawa AC drives for Siemens master motor.
- Schneider low voltage electrical appliances is also installed on our gummed paper slitting machines.
- The section is equipped with a set of upper and lower round disc cutters. The upper round disc cutters are fixed by screws. The lower disc cutters are fixed by aluminum spacer. These serve to increase the slitting precision.
- The slitting section also has a rotary encoder that automatically meters slit length.
- The rewinding section of the gummed kraft tape machine has an automatic tucker. The automatic tucker tucks the tail and cuts it to the required length. It is convenient for quickly trigger rewinding.
- Our water gummed kraft paper tape machines are also equipped with 90° vertical lay-on roller. The 90° vertical lay-on roller can move up and down. It ensures more balanced left and right pressure. The 90° vertical lay-on roller also ensures that wider rewinding diameter is realized.
- A banana roller is installed in the rewinding section to mitigate problem of slitted web overlapping.
The waste removal section has an edge waste blower through expulsion tube. This ensures that all the waste is blown from the high speed gummed paper tape machine. it serves to avoid clogging of the machine.
What Are the Parameters of Your Water Activated Kraft Paper Gummed Tape Printing Slitting Machine?
Some of the parameters of water activated kraft paper gummed tape printing slitting machine include:
- A maximum rewinder diameter of 300mm
- A minimum slit width of 30mm
- It has a web diameter of 1200mm.
- The web width is 1400mm.
- The unwinding shaft is a 3″ (76mm) air expanding shaft.
- The rewinding shaft diameter ranges between 0.5 inches and 1 inch. Note this is customizable.
- Total power of our gummed paper slitting machine is 9.5Kw.
- The voltage is 380V/50Hz.
What is the importance of web guides and how does it relate to web tension?
A web guide is essential in most unwound stands thus as it keeps the web centered on the machine. Normally, the web guide is fixed to suit a full range of widths for your products.
The adjustable side is attached onto the frame of the paper roll sitter. The web guide requires to be manually set for every product according to the width you want.
Currently, we have several edge sensors in the market which do not need manual adjustment. In the case of different web widths within certain ranges, web guides reduce the changeover time.
You will be required to go to new web widths, and this reduces waste by elimination of operator error in web guide setting.
Web tension is easier and stable to sense before the wind-up position than after the payoff position. This is because the roll for winding possesses less eccentricity as compared to the unwind roll.
The roll on the payoff is larger in diameter as compared to the rewind roll. It is mounted on a bladder mandrel and has been lagged for some period.
It is for this reason that a load cell roll offers more benefits over dancer rolls as a web tension sensor before rewind. This is because there is need for less space and it is less expensive to operate and purchase.
Can I Print on The Gum Tape Using the Water Activated Tape Slitting Machine?
Yes, you can print on the gum tape using the stacking tape printing machine. The machine is specifically designed to handle both printing and slitting capabilities. Kraft paper has printing properties making it suitable to be printed on. One side of the gum tape is glued, this side cannot be printed, but there is another side without glue.
Our stacking tape printing machine supports up to eight colors printing. The printing is usually done using a printing plate. This allows for multiple designs to be made and printed on your gummed paper tape.
The water activated tape slitting machine prints your company’s logo or the customer’s company name directly on the surface of the kraft paper tape. This serves to improve the aesthetics of the water activated tape. It also serves as an advertising avenue for your company. Visit this link to learn more on how the printing function of our water activated tape slitting machine works.
Is It Possible to Have Automatic slitted Paper Tape Roll Removal in High Speed Gummed Paper Slitting Machine?
Yes, we can provide automatic slitted paper tape roll removal in high speed gummed paper slitting machine. The automatic slitted paper tape roll removal ensures that the done paper tape roll is ejected safely from the machine. You can customize your high speed gummed paper slitting machine to include a packaging section for your slitted paper roll tape.
Normally, the master roll and wide in a way not suited to your specifications. Therefore, a high speed gummed paper slitting machine comes in handy to aid in automatic disintegration of the roll.
Jota Machineries offers a wide range of paper slitter rewinder machine to meet each specific requirement. Our high speed gummed paper slitting machine can slit a rewound automatically any material that is flexible.
In order to let you know more about we Jota company, please watch the following video for reference.
We Jota could also supply following related machines, if you are also interested in any type, please feel free to send us an inquiry:
- Hot Melt Thermoplastic CFRP CFRTP Prepreg Manufacturing Machine
- Fully Automatic Thermal Paper Roll Slitting Packing Machine
- Fully Automatic Toilet Paper Maker
- Automatic Facial Tissue Making Machine
- Plastic Film, Fabric, Aluminum Foil Slitting Rewinding Machine
- Paper Sheeter
- Paper Tube Making Machine
- CFRP CFRTP FRP Prepreg Slitter
- Paper Drinking Straws Machine
- Label Die Cutting Machine
- Flexo Printing Machine
- Cardboard Tube Cutting Machine
