What is Engineering Industry ?
In the CAD and engineering sectors, plotter paper rolls are essential for transforming complex digital models into precise physical drawings. Engineers, architects, and designers depend on these papers to reproduce exact line weights, sharp curves, and detailed annotations with professional clarity.
Used in applications such as mechanical schematics, architectural plans, circuit layouts, and construction blueprints, plotter paper provides the dimensional stability and smooth surface necessary for accurate plotting. It resists ink bleeding, maintains line definition, and ensures that measurements remain true even under varying humidity conditions.
What is a plotter paper roll?
Plotter paper rolls are designed for large-format printers used in architecture, CAD design, engineering, and graphic arts. They deliver smooth lines, precise details, and consistent ink absorption, ensuring every draft and blueprint prints with professional accuracy.
Roll Widths and Applications
| Roll Width (inches) | Metric Width (mm) | Common Print Sizes | Typical Applications |
| 11″ | 279 mm | ANSI B half-size | Small CAD plots, check prints |
| 17″ | 432 mm | ANSI C half-size | Schematics, drafts |
| 18″ | 457 mm | ARCH C | Architecture plans, GIS maps |
| 22″ | 559 mm | ANSI D | Medium engineering drawings |
| 24″ | 610 mm | ARCH D / A1 | Blueprints, CAD, posters |
| 30″ | 762 mm | ARCH E1 | Oversized plans, graphic layouts |
| 34″ | 864 mm | ANSI E | Engineering drawings |
| 36″ | 914 mm | ARCH E / A0 | Large blueprints, GIS renderings |
| 42″ | 1067 mm | A0+ | GIS maps, banners, posters |
Roll Lengths, Core Sizes, and Usage
| Roll Length (feet) | Approx. Weight (20 lb bond) | Typical Use |
| 100′ | Light | Presentation prints, archival copies |
| 150′ | Moderate | Client sets, medium-size CAD runs |
| 300′ | Standard | High-volume engineering drawings |
| 500′ | Heavy | Continuous CAD / GIS plotting |
| 650′ | Heavy | Long-run industrial projects |
| Core diameters: 2″ for inkjet plotters · 3″ for xerographic copiers | ||
Paper Weights and Types
| Bond Weight (lb) | Approx. GSM | Paper Type | Typical Application |
| 17–18 lb | 64–70 gsm | Lightweight bond | Drafts, internal check plots |
| 20 lb | 75 gsm | Standard bond | General drawings |
| 24 lb | 90 gsm | Presentation bond | Client copies, GIS prints |
| 32 lb | 120 gsm | Heavy coated bond | Renderings, presentations |
| 46 lb | 170 gsm | Premium coated bond | Posters, banners |
| — | 3–4 mil | Polyester film | Archival, waterproof drawings |
U.S. Architectural (ARCH) Formats
| Size | Dimensions (inches) | Dimensions (mm) | Common Use |
| ARCH A | 9 × 12 | 229 × 305 | Detail sketches |
| ARCH B | 12 × 18 | 305 × 457 | Preliminary layouts |
| ARCH C | 18 × 24 | 457 × 610 | Site plans, overlays |
| ARCH D | 24 × 36 | 610 × 914 | Full-scale drawings |
| ARCH E | 36 × 48 | 914 × 1219 | Large blueprints |
| ARCH E1 | 30 × 42 | 762 × 1067 | Oversized sets |
U.S. Engineering (ANSI) Formats
| Size | Dimensions (inches) | Dimensions (mm) | Common Use |
| ANSI A | 8.5 × 11 | 216 × 279 | Small notes |
| ANSI B | 11 × 17 | 279 × 432 | Schematics |
| ANSI C | 17 × 22 | 432 × 559 | Assembly drawings |
| ANSI D | 22 × 34 | 559 × 864 | Full-size plans |
| ANSI E | 34 × 44 | 864 × 1118 | Large layouts |
ISO 216 A-Series Formats
| Size | Dimensions (inches) | Dimensions (mm) | Typical Use |
| A0 | 33.1 × 46.8 | 841 × 1189 | Maps, posters |
| A1 | 23.4 × 33.1 | 594 × 841 | Engineering, architecture |
| A2 | 16.5 × 23.4 | 420 × 594 | Medium drawings |
| A3 | 11.7 × 16.5 | 297 × 420 | Brochures, diagrams |
| A4 | 8.3 × 11.7 | 210 × 297 | Office documents |
Printer Compatibility and Media Choice
| Application | Recommended Media | Weight / Type | Typical Roll Widths |
| Draft plotting | Uncoated bond | 20 lb | 24″ / 36″ |
| Presentation | Coated bond | 24 lb | 24″ / 36″ |
| Posters | Heavy coated bond | 32–46 lb | 24″ / 42″ |
| Overlays | Translucent bond | 18 lb | 18″ / 24″ |
| Archival storage | Mylar film | 4 mil | 24″ / 36″ |
Redefining Precision in Design Printing
01
Plotter paper storage Ideas
Efficient storage is key to maintaining the quality of your plotter paper rolls. Keep them upright or in protective boxes away from moisture, dust, and sunlight. Stable humidity and temperature prevent curling and smudging, ensuring smooth paper feeding and consistent, accurate prints whenever you need them.
02
where to buy plotter paper
Source plotter paper directly from certified manufacturers offering precise roll widths, consistent coating, and smooth feeding quality. Choose bond, vellum, or coated types based on your CAD, GIS, or graphic printing needs.
03
plotter paper manufacturer

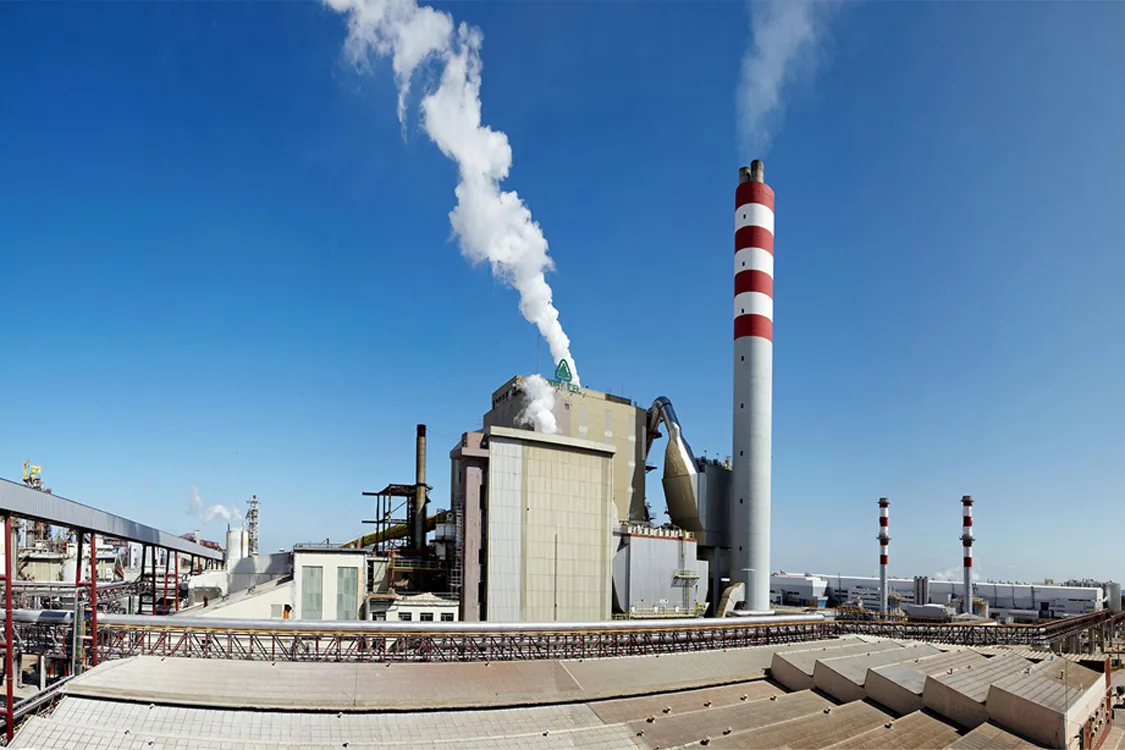

Navigator stands out for its premium-grade plotter paper made in Portugal. Known for superior surface smoothness, brightness, and line precision, their products are trusted worldwide by architects, engineers, and designers who demand consistent quality in every print.

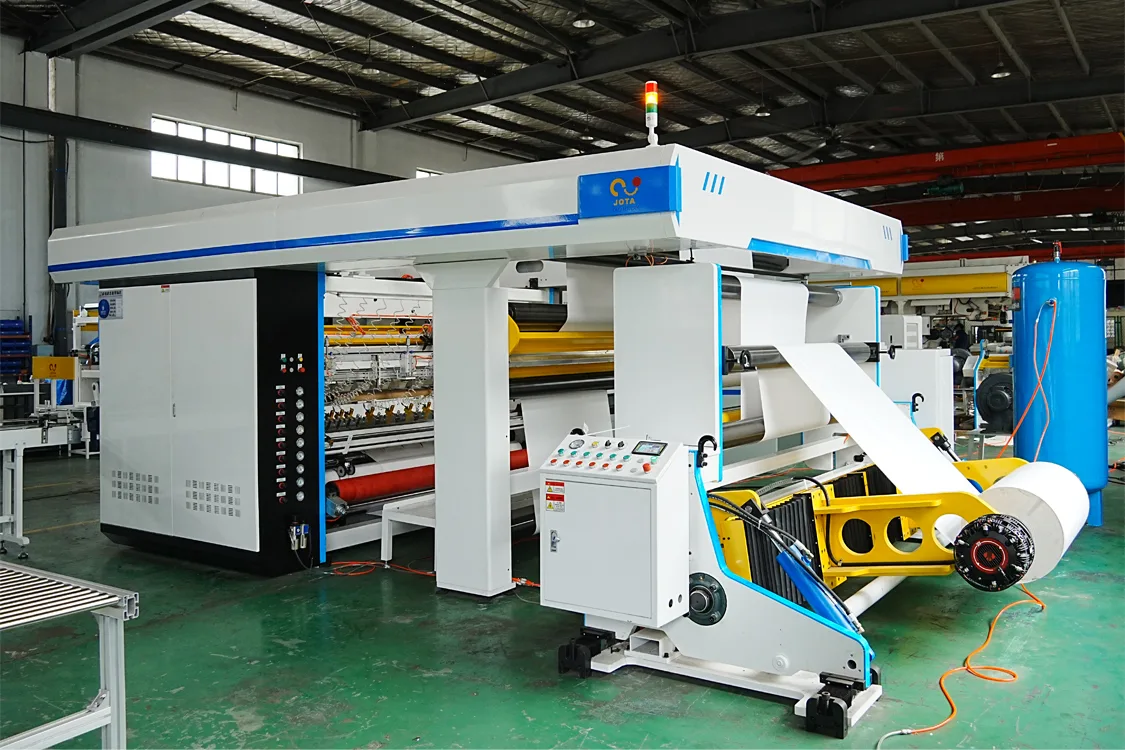

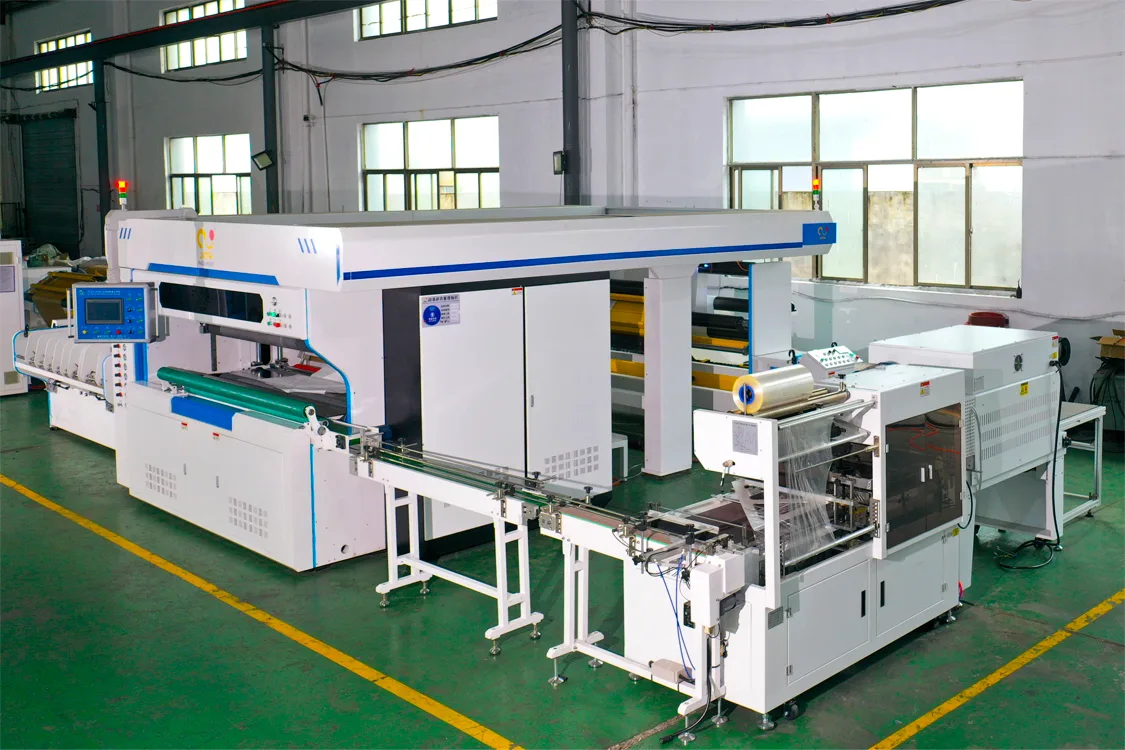

2100mm Plotter Paper Slitter Rewinder Machine

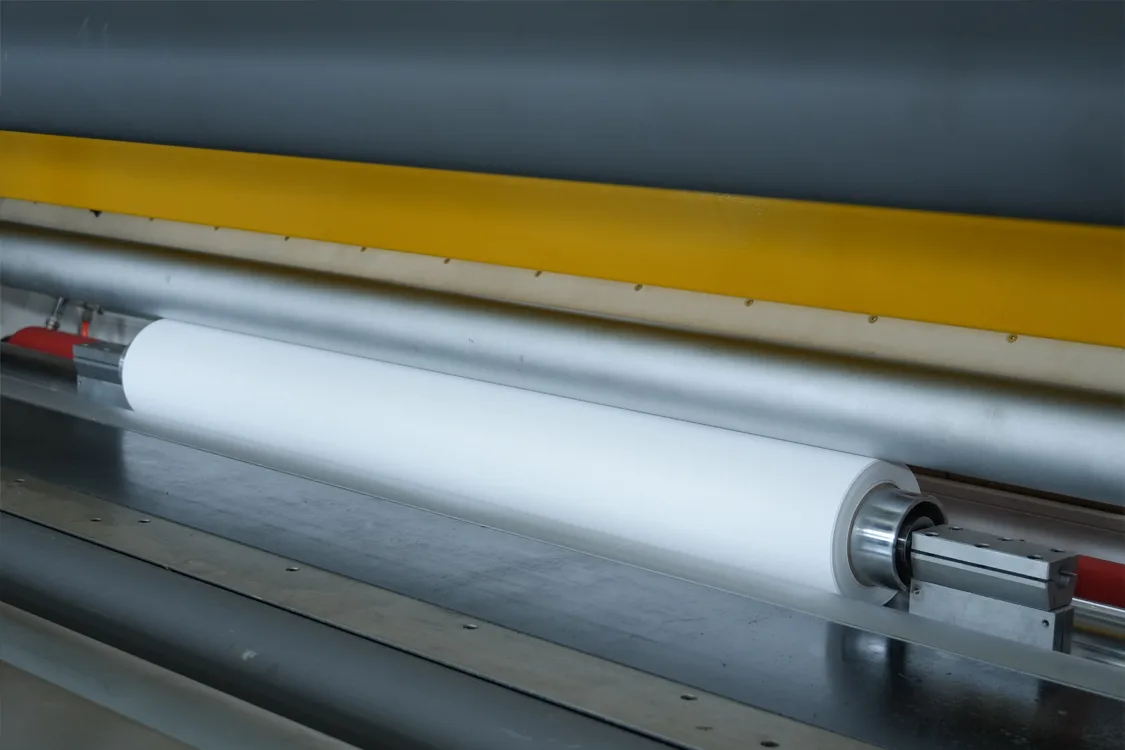

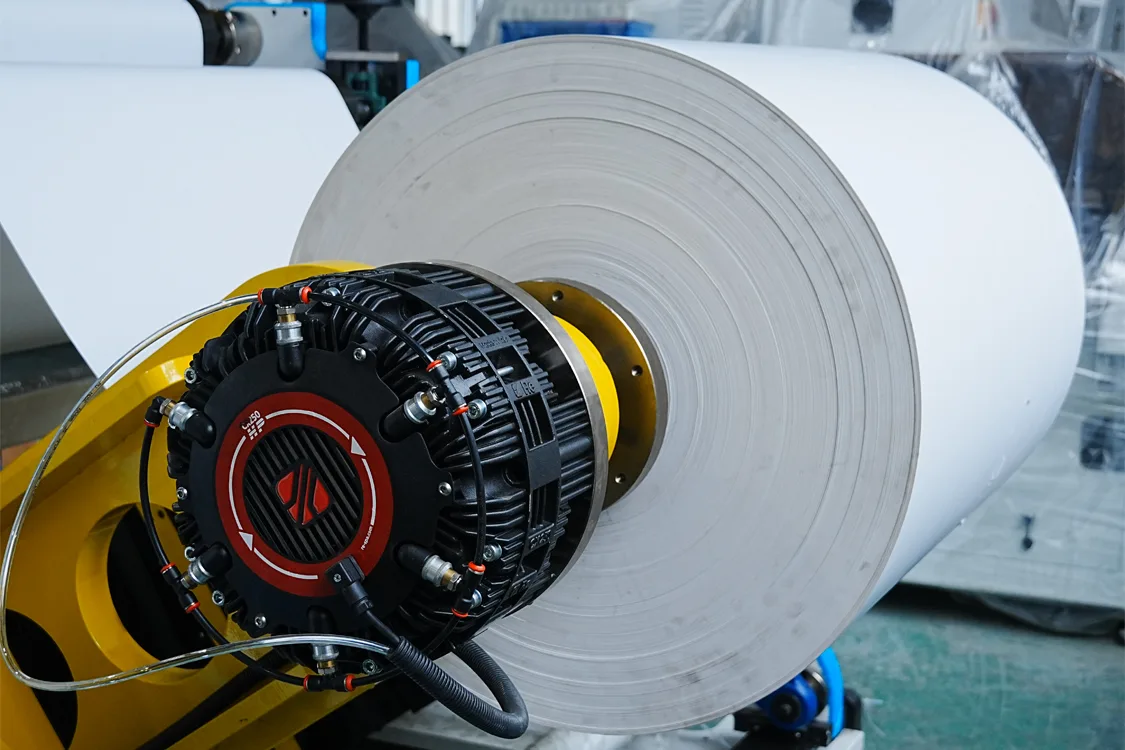

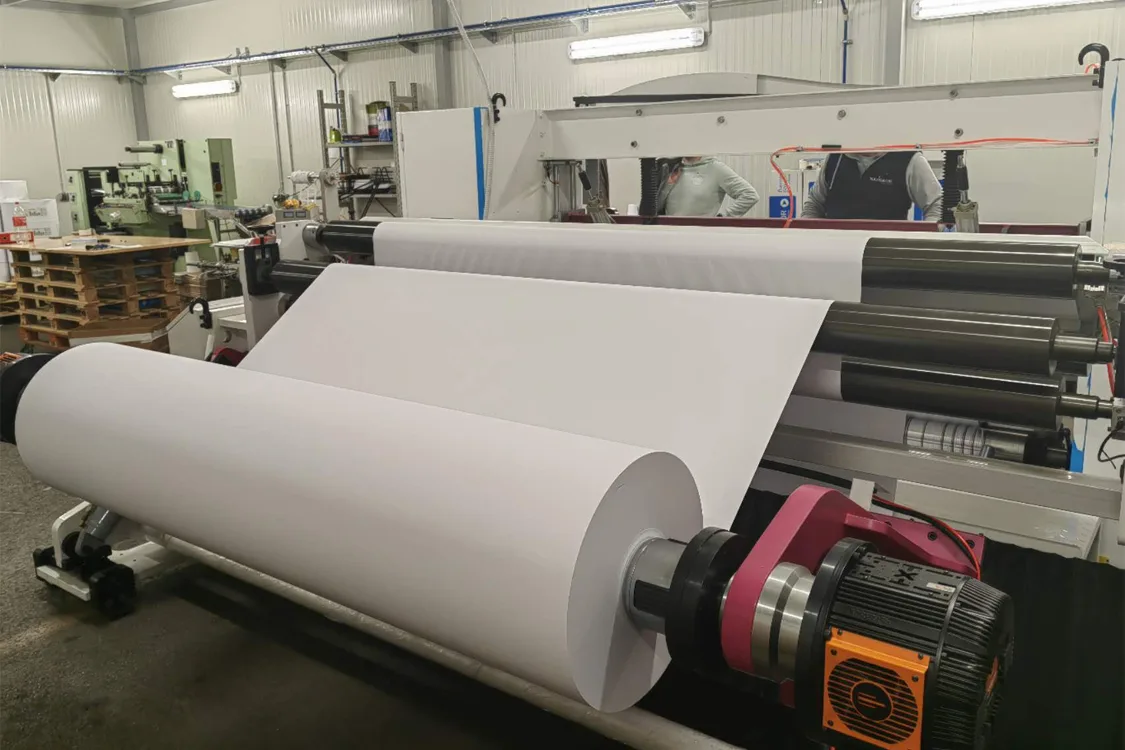

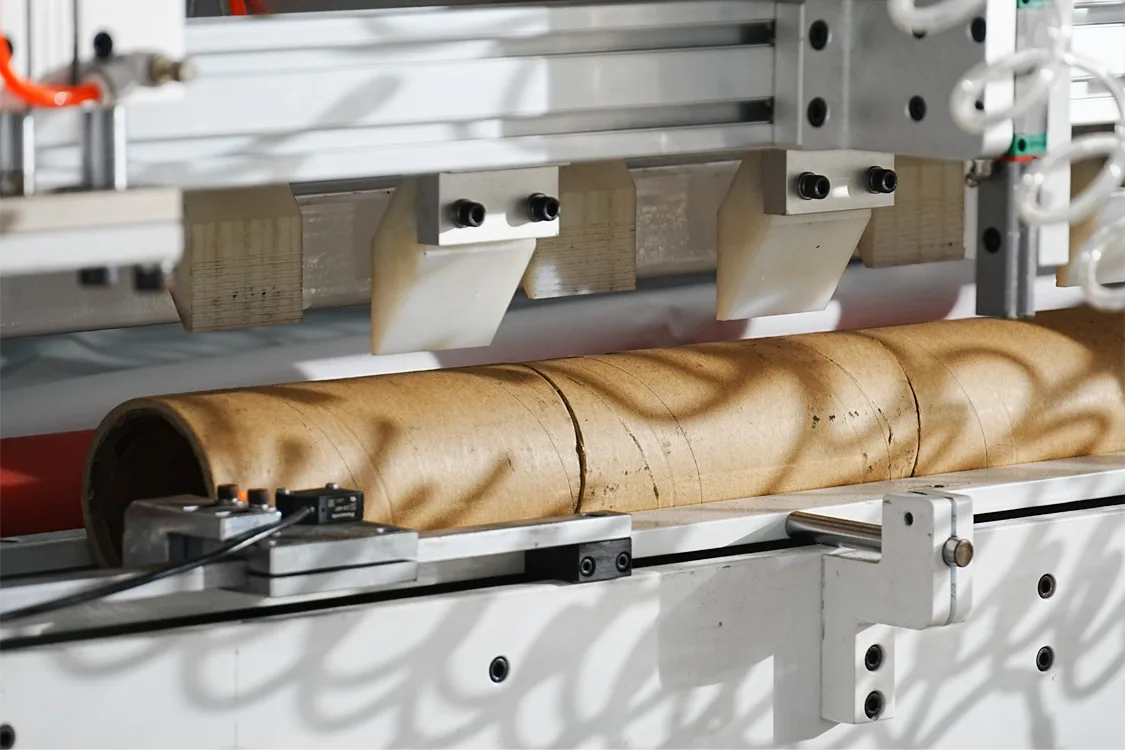

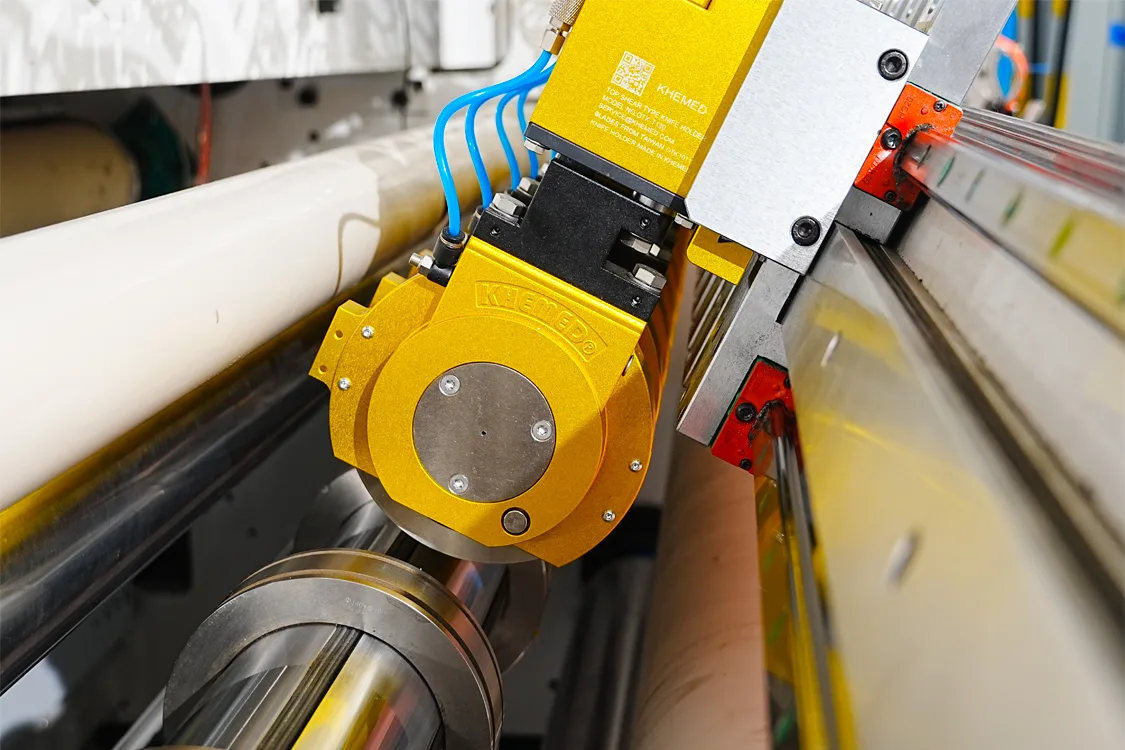

The 2100mm plotter paper slitter rewinder is China’s only wide-format converting system designed specifically for mass production of plotter paper rolls. Engineered for precision and reliability, it delivers stable tension control, clean edge finishing, and perfectly aligned rolls for large-format CAD, GIS, and printing applications. Built for continuous operation, it ensures exceptional efficiency and consistency in every production run.
