Establish Your Brand, Rule the Market

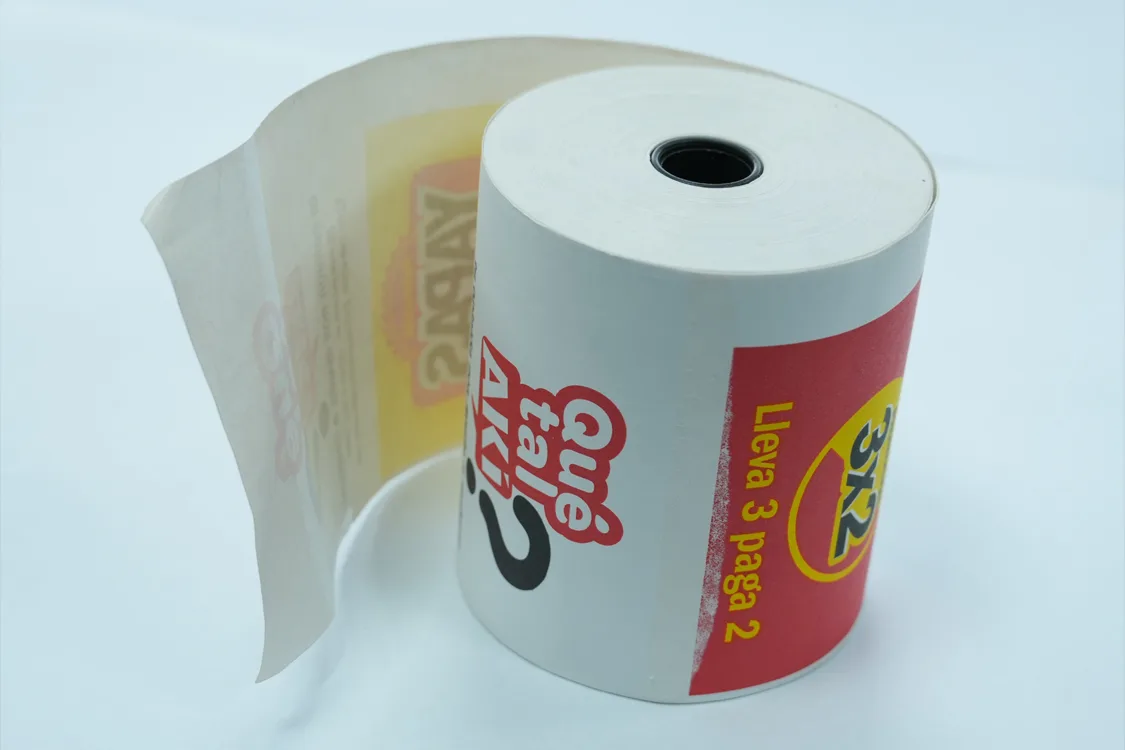

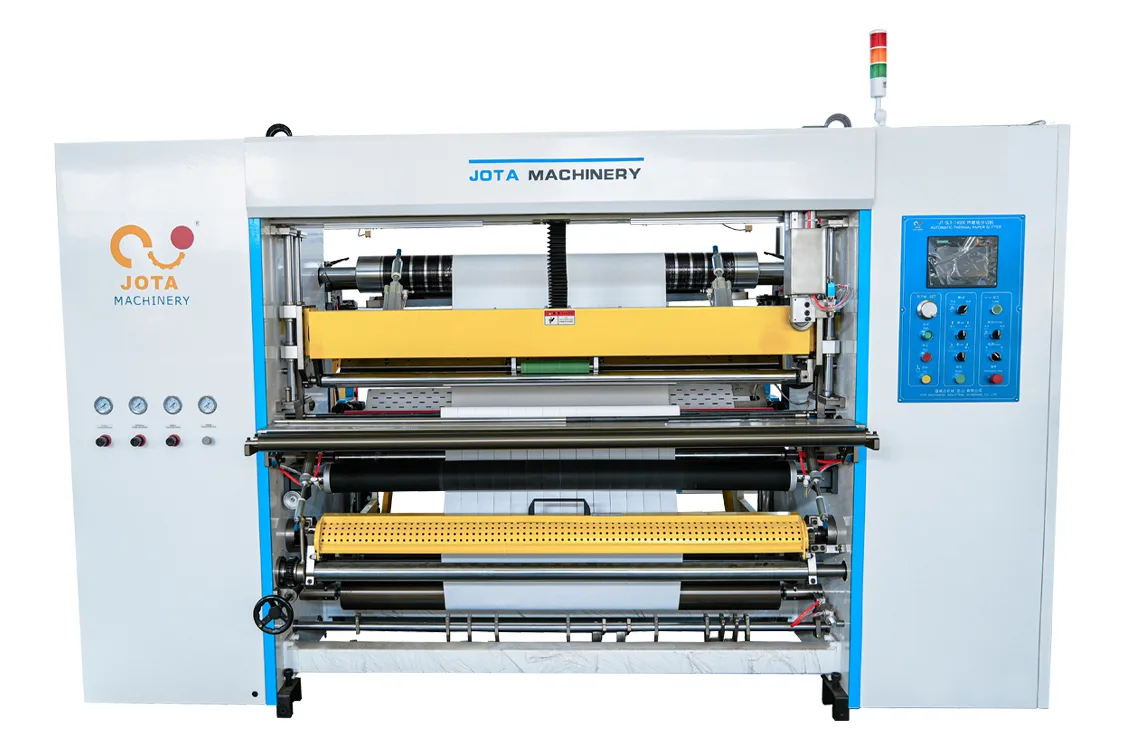

The inline printing slitter rewinder combines roll slitting, rewinding, and flexographic printing in one compact system. You can print logos, promotions, or brand messages directly on your thermal rolls while converting them, reducing extra steps and labor costs.
Unlike traditional setups that require a separate printing press, this machine eliminates the extra printing stage, giving you nonstop production when printing and slitting. From jumbo roll loading to finished POS, ATM, and cash register rolls, everything is done in one seamless workflow.
The result: higher efficiency, uninterrupted operation, and rolls that stand out in the market.
For startups and established converters alike, this machine gives you a competitive edge by turning every receipt roll into a branding opportunity.
| Series | JT-SLT-1400P |
| Suitable for | Thermal Paper, ECG Paper, Ultrasound Paper |
| Max Unwinding Width | 1400 mm |
| Max Unwinding Diameter | 1000 mm |
| Max Rewinding Diameter | 210 mm |
| Max Speed | 120 m/min（printing + slitting ) |
| Min Slitting Width | 25 mm |
| Unwinder Stand | Hydraulic |
| Rewinding Shaft | 0.5″, 1″ (customized) |
| Voltage | 3P/380V/50HZ |
| Power | 3.5 kW |
| Weight | 2500 kg |

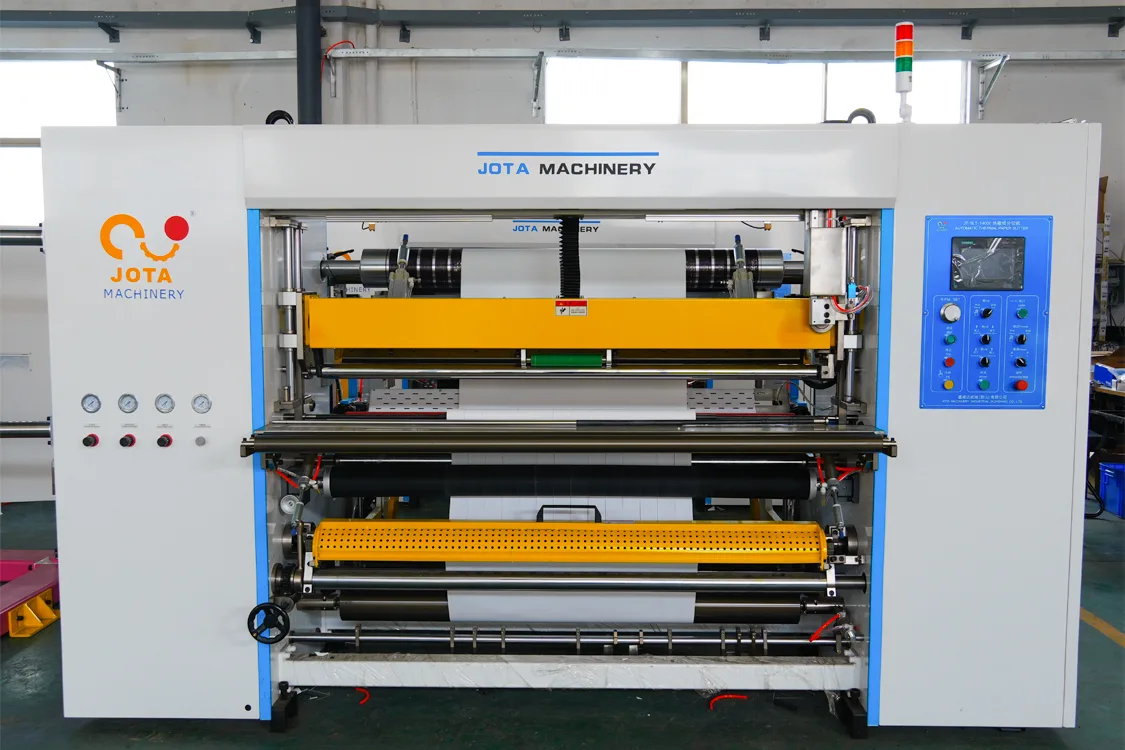

Various structures about Inline Printing Slitter Rewinder Machine

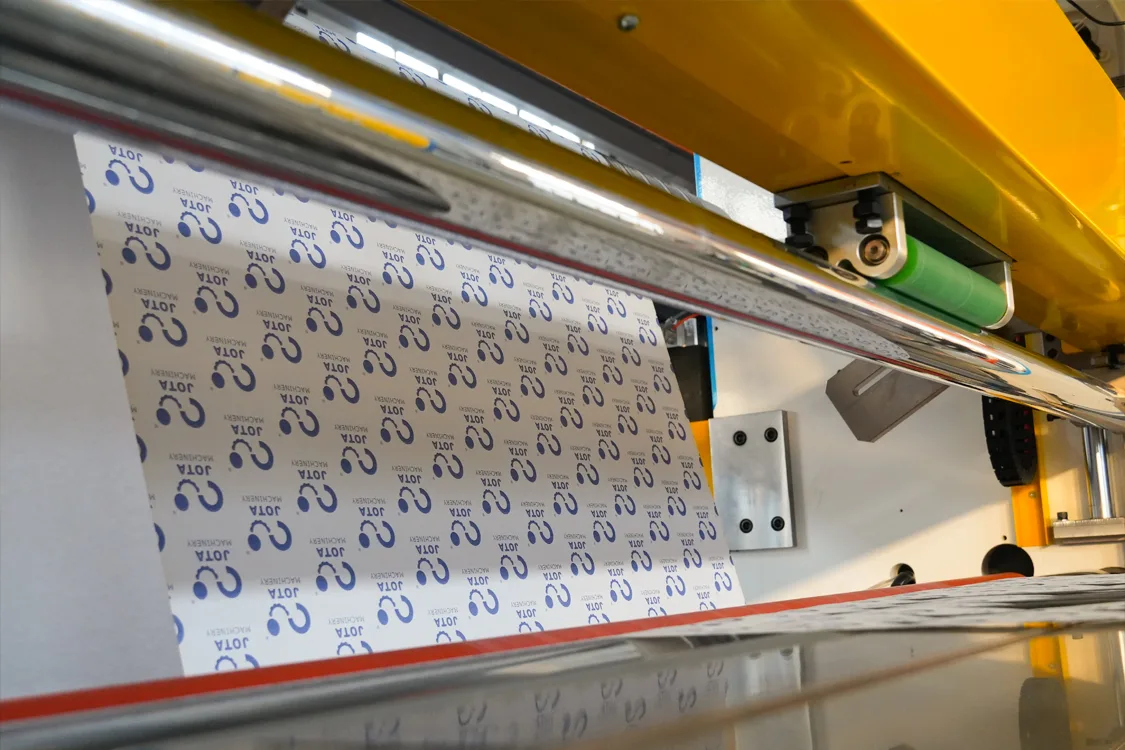

Multi-Color Printing with Accumulator
Our printing slitting machine maintains perfect speed balance between printing and slitting. Even when rewinding stops, the accumulator allows printing to continue without interruption, ensuring consistent color registration and top-quality results. With a maximum production speed of 150 m/min, it delivers high efficiency, stable performance, and premium print quality for large-volume jobs.
Lightweight Design Without Accumulator
The slitter rewinder adopts a compact structure without an accumulator unit, saving valuable floor space while simplifying the overall machine layout. Operation becomes easier and more efficient, making it highly suitable for factories with limited space or those looking for a streamlined setup. Exclusive to the JT-SLT-900 model, this unique design still supports inline printing functions, giving converters the ability to produce branded rolls conveniently while keeping the machine footprint small and cost-effective.
Single-Color Printing Solution
The slitting and printing machine is specially designed for small-scale tasks where businesses want to add their own logo or promotional branding onto rolls. There’s no need for a complicated paper-feeding process — the operation is simple, convenient, and user-friendly. It’s the ideal choice for companies that value flexibility, fast setup, and personalized roll production without heavy investment.

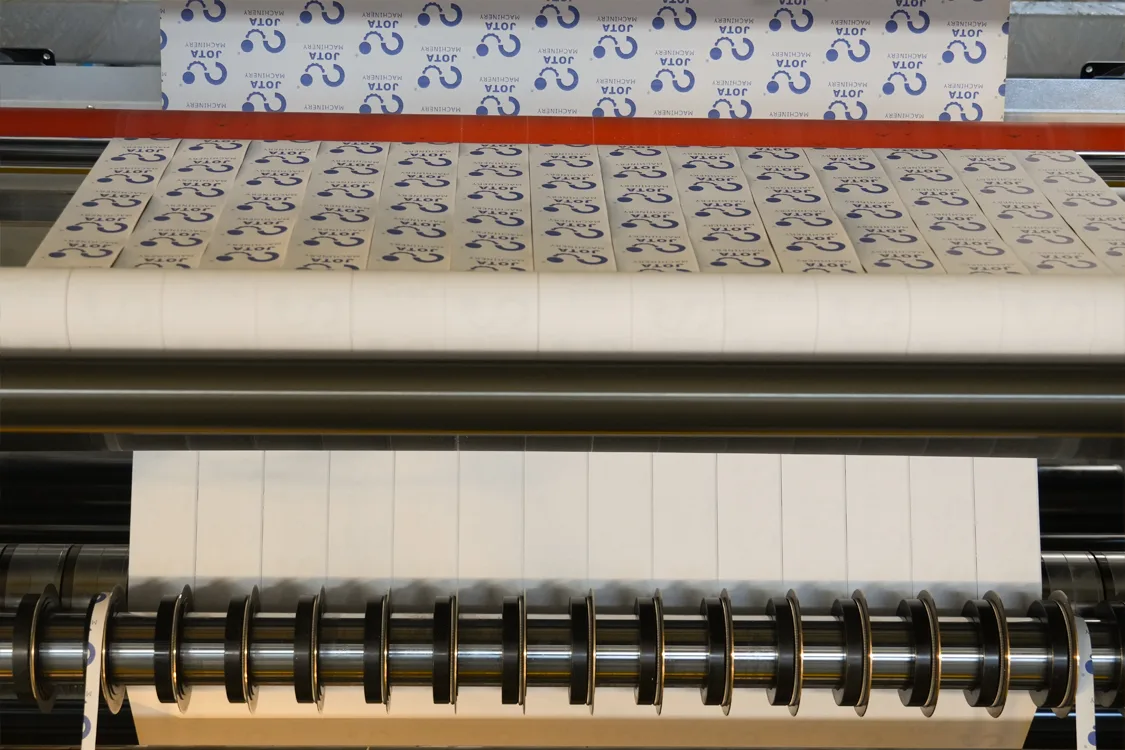

One Machine = Two-Step Results
Jota’s inline printing slitter rewinder combines printing and slitting in a single step. Save space, cut labor, and get high-quality branded rolls with one seamless workflow.
Key Engineering Features of the Inline Printing Slitter Rewinder Machine

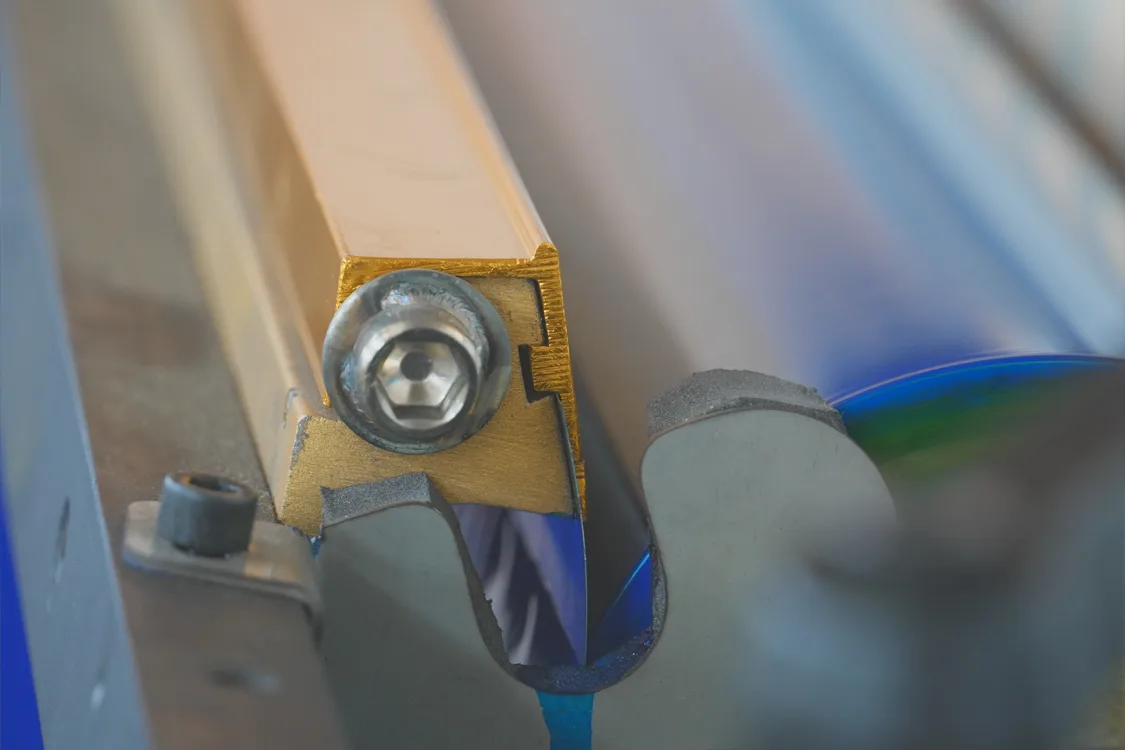

Chammer Doctor Blade
The machine is equipped with a dedicated monochrome printing station featuring a ceramic anilox roller (300–500 LPI) and a semi-closed chambered doctor blade system. This advanced configuration delivers superior ink transfer and precise control, making it especially effective with water-based inks. Customers benefit from sharper image clarity, enhanced dot resolution, and consistent print quality—a perfect solution for businesses that require high-precision branding on thermal paper rolls.

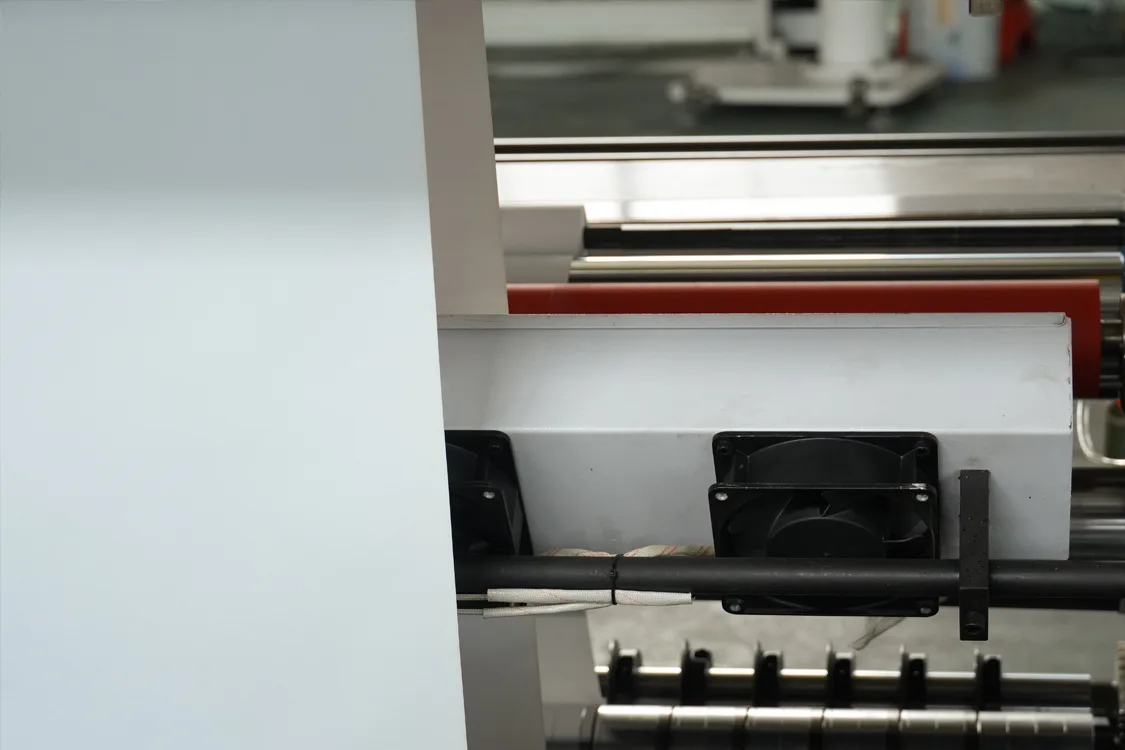

Infrared heater
To protect the integrity of thermal paper, our machine employs a dual-stage drying system that combines infrared heating with hot air blowing. This advanced design accelerates ink drying while carefully controlling the temperature below 75°C, preventing premature blackening and preserving the paper’s thermal sensitivity. The result is long-lasting image stability and reliable print quality, giving customers full confidence in the durability of their finished rolls.

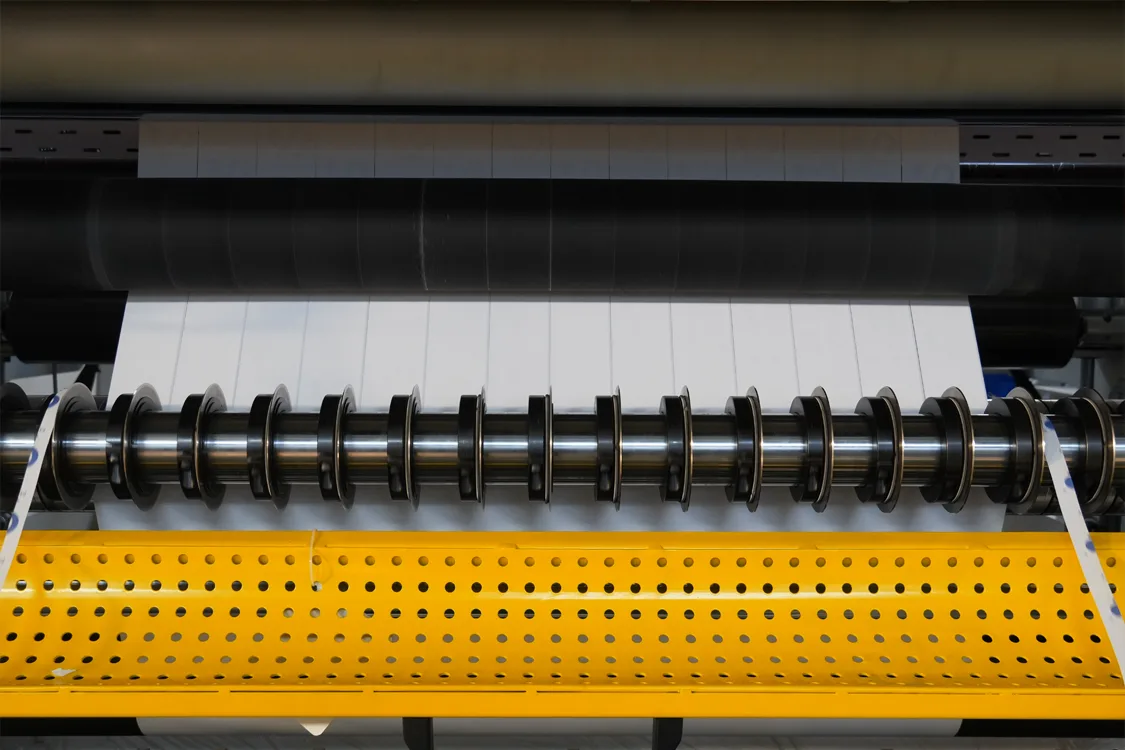

Banana Roller
Our machine features a high-performance banana roller engineered with advanced Japanese technology to meet the rigorous demands of high-speed tension control. Specially optimized for thermal paper, its curvature, surface, and rubber hardness are precisely calibrated to the material’s sensitivity, ensuring gentle yet firm contact without marking or thermal damage. By eliminating wrinkles and distortion during unwinding and printing, the roller guarantees smoother material flow, superior print accuracy, and stable performance even in long production runs.

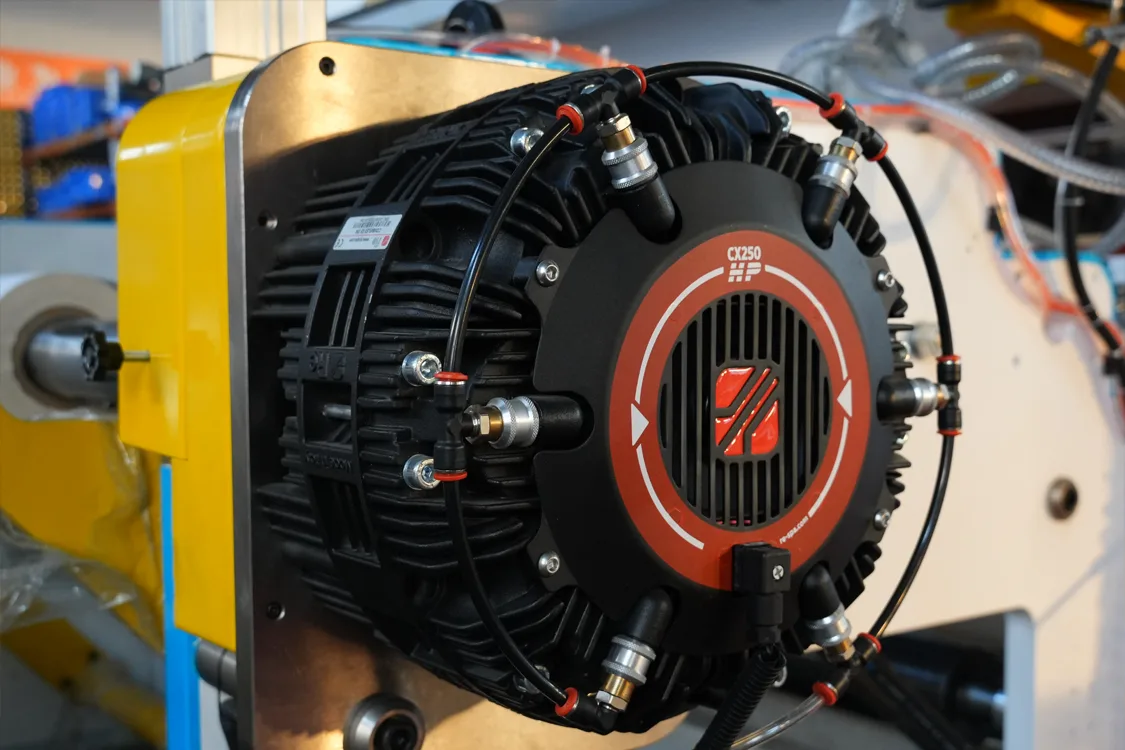

pneumatic brake
Our slitting machine is equipped with an RE-brand pneumatic brake system integrated with a fully automatic tension controller, ensuring precise and stable tension control across the entire unwinding process. The brake provides smooth, responsive performance with real-time air pressure adjustments that adapt to changes in roll diameter and material speed, preventing over-tensioning and protecting sensitive substrates like thermal paper. With closed-loop feedback, the system maintains consistent web tension from start to finish, improving slitting accuracy, reducing material waste, and extending machine uptime for reliable 24/7 production.
Our Own Production Workshop
This is our workshop, where we manufacture thermal paper slitting and rewinding machines. Every machine you see here is built, assembled, and tested by our own team. Skilled operators run the equipment, monitor control panels, and fine-tune settings to ensure smooth operation and consistent roll quality. From raw materials to finished rolls, the entire process is handled in-house, giving us full control over performance and reliability.
Worry About After-Sales Issues?
No need to. Our dedicated after-sales team is here to ensure every machine runs smoothly long after delivery. From installation to troubleshooting, our engineers provide fast, reliable, and professional support so you can focus on growing your business.
Managing Director
Bruce leads Jota Machinery with a clear vision, ensuring the company stays ahead in innovation and customer satisfaction. He oversees global operations, drives business development, and builds lasting partnerships to achieve sustainable growth.
After-Sales Engineer
Arno provides customers with reliable support after machine delivery. He manages installation, operator training, and troubleshooting, ensuring smooth performance. His client-focused service helps improve efficiency and strengthens long-term customer trust.
Programmer
Ouyang develops and refines the control systems that power Jota’s machines. With expertise in PLC programming and automation, he ensures stability and efficiency. His work delivers user-friendly, precise, and adaptable solutions for diverse production needs.
Why choose our Slitter Rewinder
We enhance product quality to ensure maximum consumer satisfaction.
Reduce Paper Dust
Our precision slitting blades and optimized paper path reduce dust generation, keeping printer heads clean and lowering maintenance downtime, ensuring consistent print quality.
Ensure Roll Accuracy
Servo-controlled slitting and rewinding, paired with a high-precision Korea-imported meter, guarantee rolls meet exact specifications, enabling smooth printer feeding every time.
Control Rewind Tension
Advanced tension control eliminates overly tight or loose rewinding, preserving roll shape, preventing damage, and ensuring perfect unwinds for uninterrupted operations.
Adapt to Market Needs
Adaptable design enables fast changeovers for various roll sizes, cored or coreless formats, and multiple paper colors, meeting diverse application demands efficiently.
