JT-800A Multi Cutter Paper Core Cutting Machine
- Min. 10mm Diameter Core Cutting
- Jumbo Tube Length 40-900mm
- 10-76mm Diameter Range Tube Cutting
- Tube Thickness 0.5-5mm
- Specification
- Video
Core Inner Diameter | 10mm-76mm |
Cutting Type | Round Blades and Paper Tube Rotate Synchronously |
Cutting Length | 40-900mm |
Cutting Type | Pneumatic Control Round Blades |
Cutting Thickness | 0.5mm-5mm |
Jumbo Core Feeding | Manual |
Cutting Speed | 25 times/min |
Terminal Core Unloading | Automatic |
Blades Quantity | 10 sets |
Operator | 1 |
Power | 1.5Kw |
Voltage | 3 Phase, 4 Wires, 380V/50Hz |
Overall Dimension | 1900mm*1050mm*650mm |
Features |

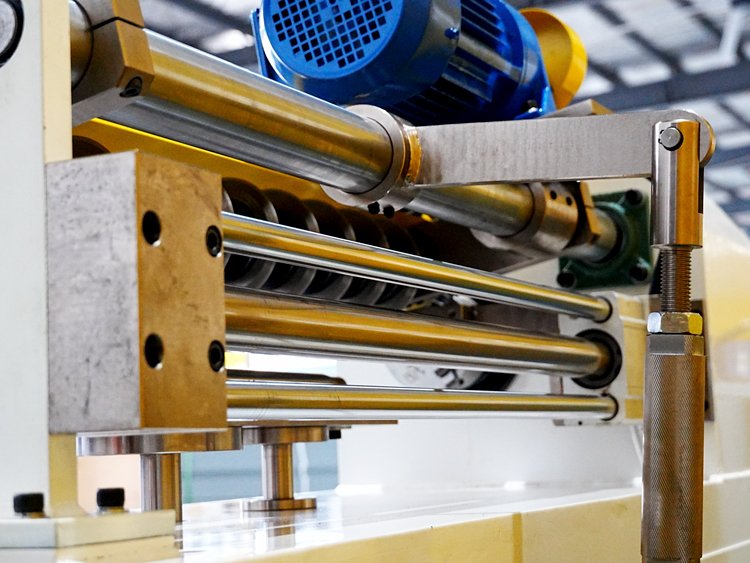

1. JT-800A paper tube cutting machine adopts pneumatic control round blades for cutting. |
2. Easy to operate, economic model. |
3. High speed and relatively high precision. |
4. Suitable for cutting different length, inner diameter, thickness paper cores. |
5. Round blades and paper tubes rotate synchronously to realize quick cutting. |
6. Automatic terminal paper core discharging system, reduce manual workload. |
7. Two motors, one drives mandrel rotating with paper core, the other drives blades rotating. |
Why Jota JT-800A Multi-Cutter Paper Core Cutting Machine
Last update time:22/03/2022
Jota JT-800A multi-cutter paper core cutting machine won the favor of dear Saudi Arabia client, Mr. Sultan.
Dear Client Mr. Sultan
In 2017, Mr. Sultan purchased a kraft paper slitting machine, a paper tube making winding machine, and this JT-800A paper tube cutting machine from us.
With these 3 machines, Mr. Sultan’s factory can convert 1300mm width craft paper jumbo roll to 56mm (2 1/4 inches) and 79mm (3 1/8 inches) width paper core.
And output 56mm paper core’s inner diameter is merely 13mm, the thickness of 2.5mm, output 79mm width paper core’s inner diameter is only 14mm, such small inner diameter paper core could also be made and cut by Jota paper tube winding machine and paper core cutter.

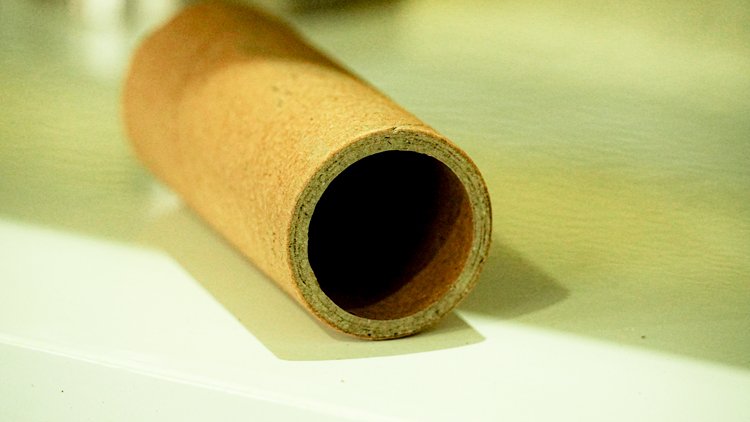

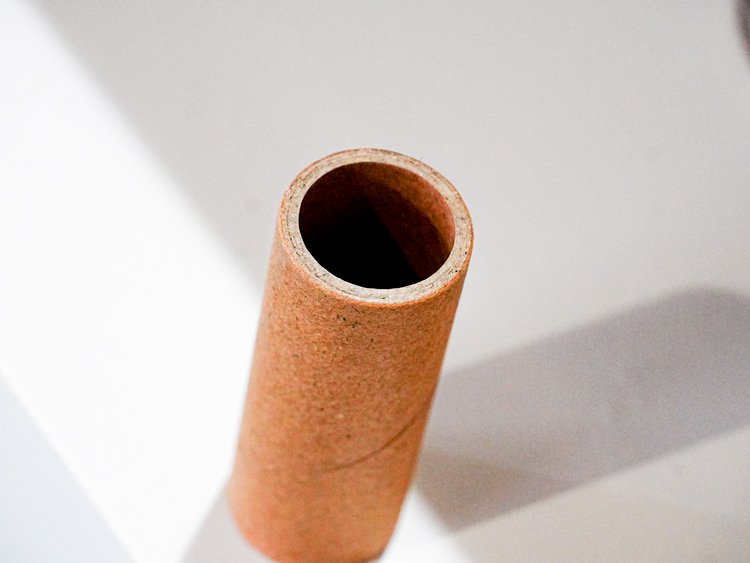

13mm Inner Diameter Paper Core
Mr. Sultan firstly visited Jota’s factory on 20 Oct 2017. During his stay in China, he enjoyed deep and pleasant communication with Jota boss Bruce and sales manager Elyn.
Joint Photo

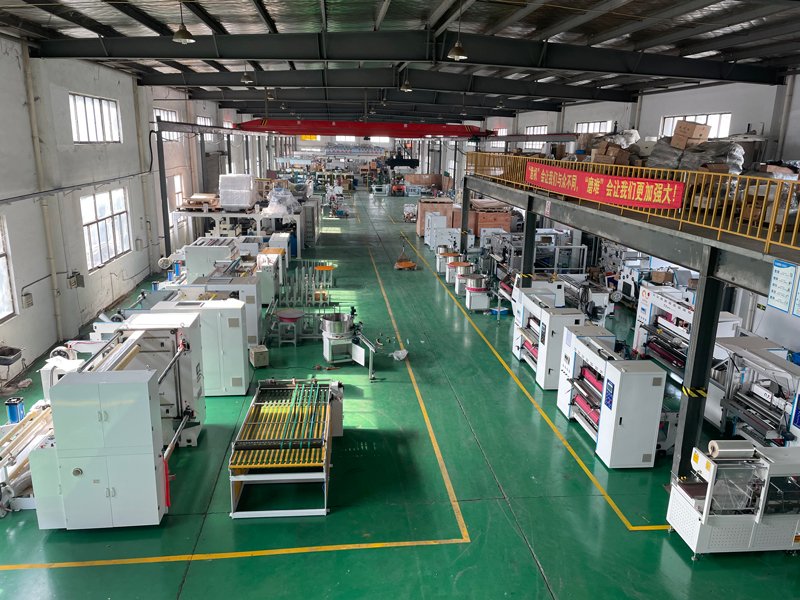

To let Mr. Sultan know more about Jota machinery, Bruce and Elyn have guided him to visit the Jota factory and CNC center. Due to the existence of the factory and CNC center, Mr. Sultan could strongly feel that Jota machinery was an original paper core pipe cutting machine manufacturer.
Mr. Sultan was so impressed with Jota Machinery Engineering Team, and he even suggested we build a better website. He thought that Jota machinery is a real China supplier worthy of more exposure on the internet, he also hoped that more clients like him could find Jota Machinery.
Thanks to Mr. Sultan’s constructive advice, now we Jota are putting our heart into developing a better website.
After Mr. Sultan visited us, he also went to other cities, such as Wenzhou. He researched many other Wenzhou machine suppliers and their cardboard tube cutters, and finally went back home.
In the following days, we Jota machinery has kept a close relationship with Mr. Sultan.
At the beginning of 2018, Jota boss Bruce went to Saudi Arabia for a business trip, met with Mr. Sultan. Then Bruce took Mr. Sultan to meet with Jota’s thermal paper slitting machine clients in Saudi Arabia.
These thermal paper slitting machine clients are potential customers for Mr. Sultan because making thermal paper roll needs paper core. So one kraft paper tube cutting machine is necessary.
Mr. Sultan realized that Bruce and we Jota is like a partner full of sincerity, treating his business as our business.
Mr. Sultan and Jota’s marriage began after Bruce’s business trip. And this marriage gave birth to a better business for Mr. Sultan. Now, Mr. Sultan is arranging payment for another paper tube rolling winding machine.
Mr. Sultan’s JT-SLT-1300C Kraft Paper Slitting Machine
Mr. Sultan’s JT-50A Paper Tube Making Machine
Mr. Sultan’s JT-800A Paper Core Cutting Machine
What a happy ending for both our 2 sides. According to Mr. Sultan’s experience, we Jota is definitely worthy of your trust. Please contact us for more details about this cardboard tube cutting cutter machine JT-800A.
To let you know more about we Jota company, please watch the following video for reference.
