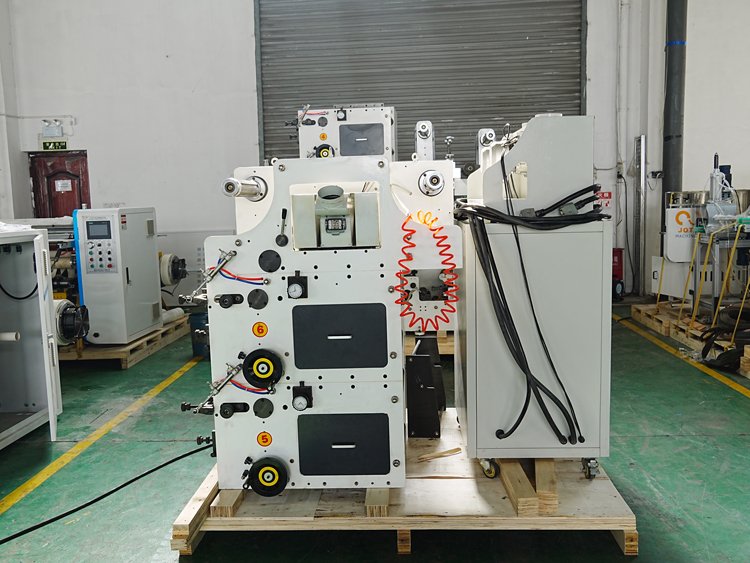

JT-FPT-320 Label Flexo Printing Machine

320mm Label Jumbo Roll Printing
  • Max. printing speed 100m/min
  • Printing color 1-6
  • Max. printing width 320mm
  • Max. unwinding diameter 600mm
Printing speed

100m/min

Printing color

1-6 color

Max. web width

320mm

Max. printing width

320mm

Max. unwinding diameter

600mm

Max. rewinding diameter

550mm

Printing length

175-320mm

Power

5.5Kw

Material Thickness

60gsm-250gsm

Precision

±0.10mm

Voltage

3-phase, 4-wire, 380V, 50Hz

Weight

3500Kg

Overall Dimensions (L x W x H)

2500mm x 1300mm x 3300mm



Ceramic anilox cylinder transfers the ink, long life, wear resistance, corrosion resistance, reduce the anilox cylinder replacement times, highly improve the printing efficiency.
Each printing unit adopts 360° plate adjustment, it can be individually united or separated, enables other printing units to continue working.
Each printing unit equips with an IR dryer for fast drying.
Optional: 3 die-cutting stations, the first and second are capable of double-sided die cutting, the third can be used as sheeter.
After the third die-cutting station’s sheeting, the conveyor belt can output the terminal label sheets orderly. (optional)
Standard configuration: automatic web-guiding system is installed in the front of printing unit, it ensures the material is always in the right position.
Unwinding and rewinding tension are respectively controlled by magnetic powder brake and clutch (Optional: Japan Mitsubishi automatic tension controller).
Unwinding and rewinding shafts are 3’’ (76mm) air expanding shafts.
Video inspecting system is optional, it can monitor the printing quality when machine works in high speed.
The fountain cylinder and anilox roller will be separated from the plate cylinder, and keep rotating at low speed when the machine stops.
Material-feeding, printing, varnishing, drying, laminating, die-cutting, rewinding and sheeting one-stop production. It is the most ideal machine for printing high-grade self-adhesive trademarks or labels in various printing plants.

Related Machines

JT-FPT-320 Label Flexo Printing Machine

JT-FPT-320 label flexo printing machine is a machine specially designed for label printing. This machine has attracted many customers’ interest because of its many attractive selling points.

Label-Flexo-Printing-Machine-1

Mr. Sergio, a Mexican customer, is particularly interested in this flexo printing machinery.

In order to better understand this label printing machine, Mr. Sergio came to China to inspect our factory and JT-FPT-320 high speed and high quality label flexographic printing machine, together with his boss and 2 other colleagues.

Label-Flexo-Printing-Machine-7

Mr. Sergio’s Joint Photo With Jota CTO And Sales Team

To welcome Mr. Sergio who is full of sincerity, our CTO of Jota and all sales stopped their work and participated in the reception of Mr. Sergio.

We took him to learn more about the Jota assembly workshop and CNC machining center, which left a deep impression on Mr. Sergio and his colleagues.

Jota-Machinery-Factory-Focus

Jota-Machinery-CNC-Center

Jota-Machinery-Quality-Control

Later, according to the customer’s request, the working effect of the JT-FPT-320 label flexo printing machine was demonstrated on the spot.

During the operation of the machine, the customer praised the label flexo printing machine’s actual operation effect and leaned over to check various details related to the machine operation from time to time.

Label-Flexo-Printing-Machine-2

For the machine test video, please refer to the following video:

In the end, the customer placed an order to purchase the JT-FPT-320 six-color label flexo printing machine. After the machine was produced, the customer came to China again from Mexico to check the quality of the machine.

After the customer’s inspection, he was very satisfied with the machine’s running effect. After finish formal working, customers want to take the opportunity of coming to China to appreciate China’s scenery.

As a result, all of our Jota sales accompanied customers to entertain in Shanghai for a week.

Label-Flexo-Printing-Machine-8

Nanjing Road Pedestrian Street

Label-Flexo-Printing-Machine-9

Oriental Pearl Tower, the Bund, Shanghai

The JT-FPT-320 label flexo printing machine can win the Mexican customer’s order, and there are many points that need to be specifically mentioned.

This machine can complete the entire process from roll feeding, printing, varnishing, automatic infrared (UV) drying, laminating, and winding in one stop by adding various optional parts.

You can choose optional parts according to your own budget to achieve the printing effect you want.

This label flexo printing machine has a wide printing range and can print materials such as thermal paper, film, glossy paper, metallic paper, cards, tags, etc., as long as your material parent roll width is less than or equal to 320mm.

The JT-FPT-320 label flexo printing machine introduces a ceramic anilox roller for ink transfer. The ceramic anilox roller has the characteristics of long life, wear resistance, and corrosion resistance.

Label-Flexo-Printing-Machine-4

The times of replacements during the printing process are quite few, which can effectively improve printing efficiency and reduce downtime, thereby improving economic efficiency.

What’s more, JT-FPT-320 label flexographic printing machine equips with edge position controller (EPC). With EPC,  material deviation during the feeding process can be avoided effectively, material waste can be decreased to a minimum extent.

Label-Flexo-Printing-Machine-10

Because the ink used in this label flexo printing machine is water-based ink, it does not pollute the environment and can achieve environmentally friendly production.

If you want to learn more about this flexo printing machine, please send an inquiry on our website, we will reply you as soon as possible and assist you in purchasing the label flexo printing machine you dream of.
